HVAC Assembly Components (C68)

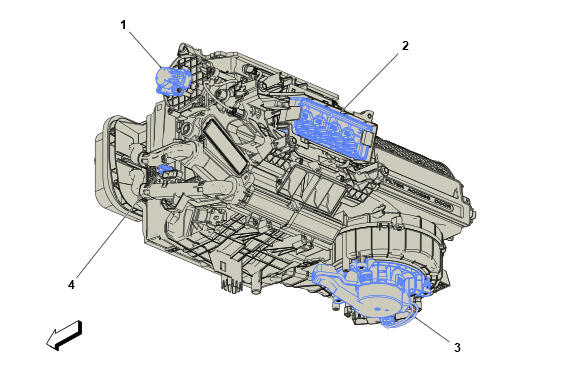

| Items |
|---|
| 1. M37 Mode Door Actuator (C68) M37 Mode Door Actuator (C68) |
| 2. K33 HVAC Control Module K33 HVAC Control Module X1 (C68) , or K33 HVAC Control Module X2 , or K33 HVAC Control Module X3 |
| 3. M8 Blower Motor M8 Blower Motor |
| 4. B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor |

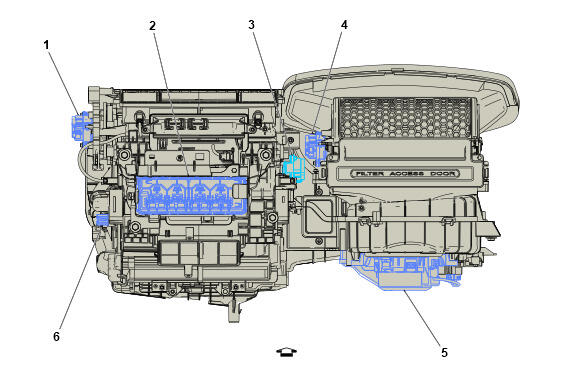

| Items |
|---|
| 1. M37 Mode Door Actuator (C68) M37 Mode Door Actuator |
| 2. K33 HVAC Control Module K33 HVAC Control Module X1 (C68) , or K33 HVAC Control Module X2 , or K33 HVAC Control Module X3 |
| 3. M6 Air Temperature Door Actuator (C68) M6 Air Temperature Door Actuator (C68) |
| 4. M4 Air Inlet Door Actuator M4 Air Inlet Door Actuator |
| 5. M8 Blower Motor M8 Blower Motor |
| 6. B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor |
