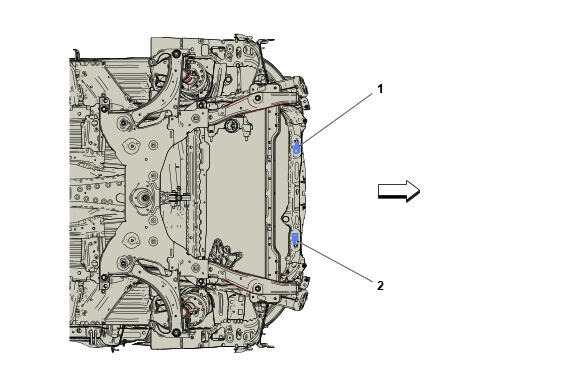

Bottom of Engine Components

GM6474033Courtesy of GENERAL MOTORS COMPANY
Items
1. B59R Front Impact Sensor - Right (AY0) B59R Front Impact Sensor - Right (AY0)
2. B59L Front Impact Sensor - Left (AY0) B59L Front Impact Sensor - Left (AY0)
