Fastener Specifications

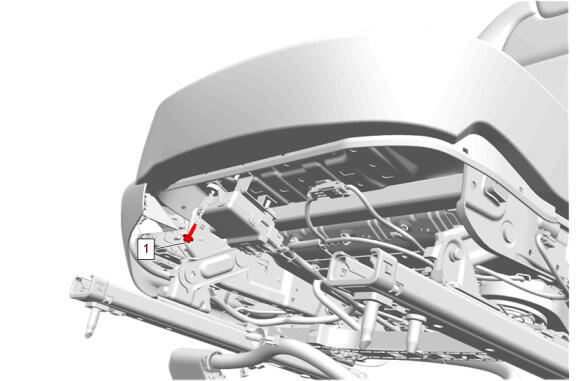

Front Seat Heater Vent Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Heater Control Module Bolt | - | - | 3 N.m (27 lb in) | Front Seat Heater Vent Control Module Replacement |

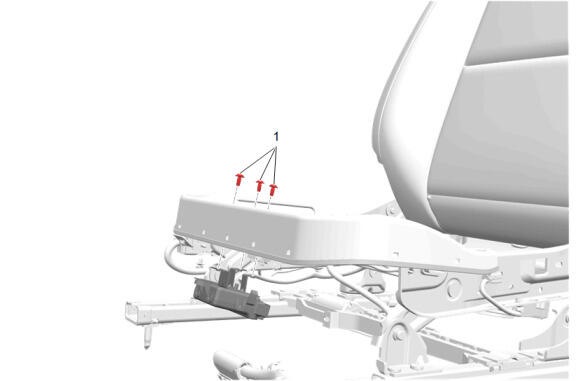

Front Seat Heater Control Module Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Heater Control Module Bracket Bolt [3x] | - | - | 4 N.m (35 lb in) | Front Seat Heater Control Module Bracket Replacement |
