Installation Procedure

  1. GM4353813Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor (1) - Install

  2. GM4353811Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Wheel Speed Sensor Bolt (1) - Install and tighten - Fastener Specifications

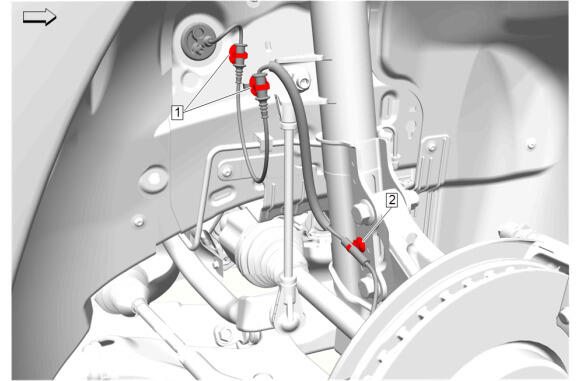

  3. GM6383150Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Secure [2x]

  4. Retainer (2) @ Strut Assembly - Secure
  5. GM4774044Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor Harness Pass Through Grommet (1) - Secure

  6. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
  7. Lower the vehicle.

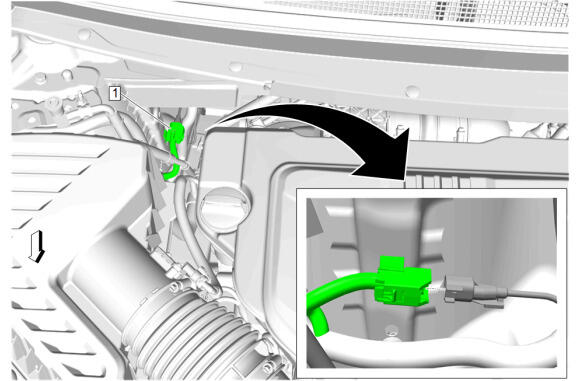

  8. GM6383149Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor Electrical Connector (1) - Connect

  9. Verify the repair is complete. Diagnostic Repair Verification
