Installation Procedure

  1. GM6389407Courtesy of GENERAL MOTORS COMPANY

    Place The Front Side Door Window (1) Into The Door Frame.

  2. Place The Front Side Door Window In The Full Up Position And Tape In Place.
  3. GM6389398Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Channel Retainer (2) - Install

  4. If A New Threaded Component Is Being Installed, Loosen The Adhesive Using A Metal Pick Or Similar Tool Before Proceeding. If Threaded Component Is Reused, Prepare The Threaded Component Using The Following Steps:
    1. Remove Any Loose Cured Adhesive From The External Threads Of The Component Using A Lint Free Cloth.
    2. Thread The Cleaned Component Into The Internal Mating Threads And Remove To Loosen Trapped Cured Adhesive.
    3. Remove Loose Debris From Internal And External Threads Using Compressed Air.
    4. Apply Liquid Thread Locking Adhesive In A Strip Along Half Of The Length Of The External Threads, Starting At The Tip, Just Prior To Installation. adhesives, Fluids, Lubricants, And Sealers
    5. CAUTION:

    Refer To Fastener Caution .

  5. Front Side Door Window Channel Retainer Bolt (1) - Install And Tighten [2X] - fastener Specifications
  6. GM6389404Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The Thread Locking Adhesive Is To Be Applied To The Studs On The Front Side Door Window Regulator (2).

    If A New Threaded Component Is Being Installed, Loosen The Adhesive Using A Metal Pick Or Similar Tool Before Proceeding. If Threaded Component Is Reused, Prepare The Threaded Component Using The Following Steps:

    1. Remove Any Loose Cured Adhesive From The External Threads Of The Component Using A Lint Free Cloth.
    2. Thread The Cleaned Component Into The Internal Mating Threads And Remove To Loosen Trapped Cured Adhesive.
    3. Remove Loose Debris From Internal And External Threads Using Compressed Air.
    4. Apply Liquid Thread Locking Adhesive In A Strip Along Half Of The Length Of The External Threads, Starting At The Tip, Just Prior To Installation. adhesives, Fluids, Lubricants, And Sealers
  7. Front Side Door Window Regulator (2) - Install
  8. Front Side Door Window Regulator Nut (1) - Install And Tighten [5X] - fastener Specifications
  9. Connect The Electrical Connector.
  10. GM6389402Courtesy of GENERAL MOTORS COMPANY

    Place The Window Regulator Sash Retainers (1) In The Full Up Position.

  11. GM6389403Courtesy of GENERAL MOTORS COMPANY

    Remove The Tape Holding The Front Side Door Window (1) In The Full Up Position.

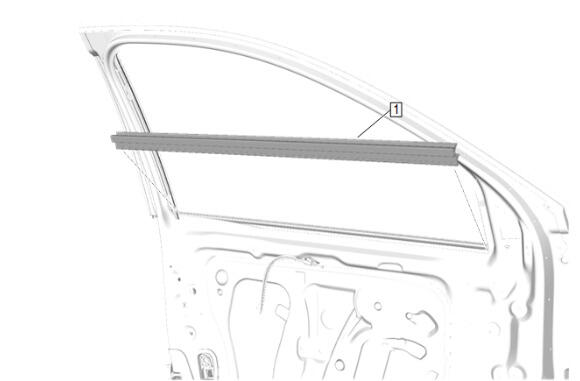

  12. GM6389401Courtesy of GENERAL MOTORS COMPANY

    Install The Sealing Strip (1) To The Flange Of The Door And Push Downward Until Fully Seated.

  13. Front Side Door Window Inner Sealing Strip (1) - Install
  14. GM6389400Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Frame Rear Applique (1) - Install

  15. GM6389399Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Frame Rear Applique Bolt (1) - Install And Tighten [2X] - fastener Specifications

  16. Install The Rear Edge Of Rear Side Door Window Weatherstrip.

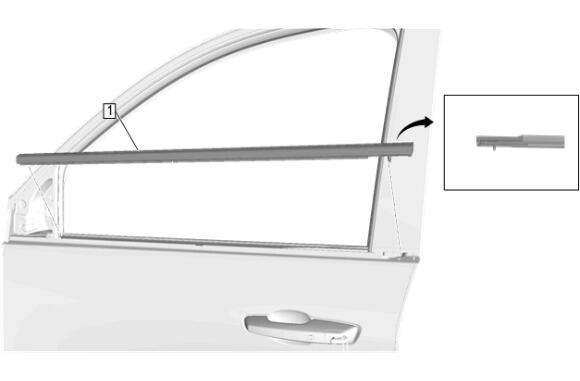

  17. GM6389396Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Belt Reveal Molding (1) - Install

  18. GM6389397Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Belt Reveal Molding Bolt (1) - Install And Tighten - fastener Specifications

  19. GM6389408Courtesy of GENERAL MOTORS COMPANY

    Spray The Front Side Door Weatherstrip With A Suitable Lubricant To Assist In Sliding The Front Side Door Upper Reveal Molding (1) Down The Center Of The Weatherstrip.

  20. Front Side Door Window Upper Reveal Molding (1) - Install
  21. GM6399501Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Water Deflector (1) - Install

  22. GM6399495Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Armrest Bracket (2) - Install

  23. Front Side Door Armrest Bracket Bolt (1) - Remove [2X] - Fastener Specifications
  24. GM6399503Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure That The Door Weatherstrip Is Not Trapped Below The Front Side Door Window Garnish Molding (2) Once Completely Installed. Reposition The Weatherstrip As Necessary.

    Front Side Door Window Garnish Molding (2) - Install

  25. Front Side Door Window Garnish Molding Retainer (1) - Install [2X]
  26. Front Side Door Trim - Install - Front Side Door Trim Removal And Installation
  27. Enable The Sir System. Sir Disabling And Enabling .
  28. Ensure The Window System Operates Properly.
