Installation Procedure

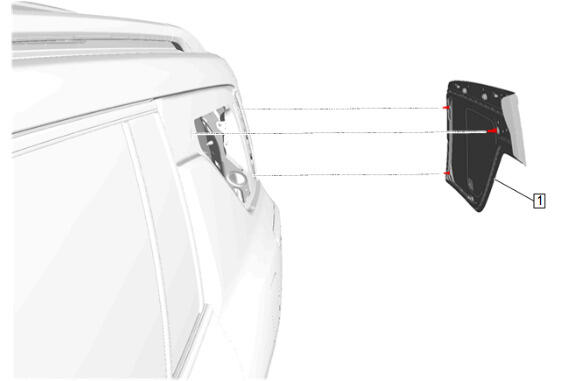

  1. GM6389381Courtesy of GENERAL MOTORS COMPANY

    Body Side Window (1) - Install - adhesive Installation Of Bodyside Stationary Windows

  2. Remove The Double Layer Of Masking Tape Around The Perimeter Of The Painted Surfaces.
  3. Remove Any Remaining Adhesive Residue With A 50/50 Mixture By Volume Of Isopropyl Alcohol And Clean Drinkable Water. Wipe The Surface Dry With A Clean Lint-Free Towel.
