Fastener Specifications

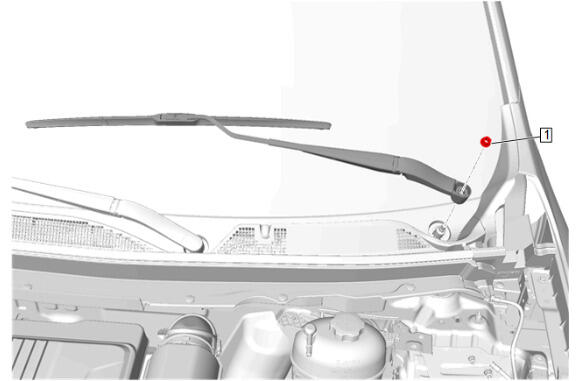

GM6418558Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Windshield Wiper Arm

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Wiper Arm Nut [2x] - - 30 N.m (22 lb ft) Windshield Wiper Arm Replacement

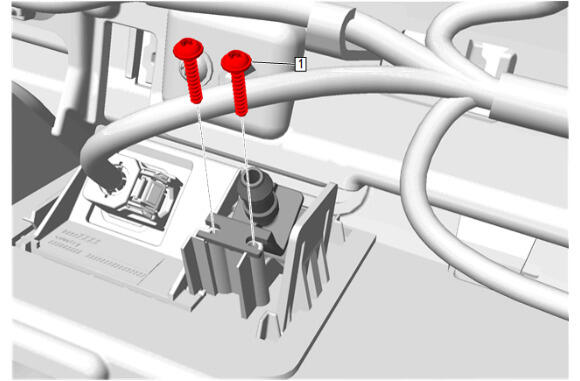

GM6389486Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rearview Driver Information Camera Nozzle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rearview Driver Information Camera Nozzle Bolt [2x] - - 0.7 N.m (6 lb in) Rearview Driver Information Camera Nozzle Replacement - Liquid

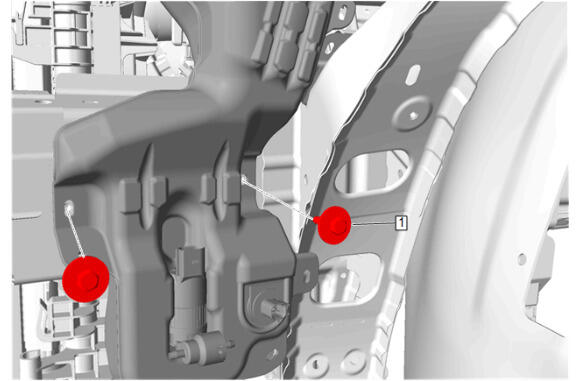

GM6389528Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Windshield Washer Solvent Container

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Washer Solvent Container Bolt [2x] - - 9 N.m (80 lb in) Windshield Washer Solvent Container Replacement

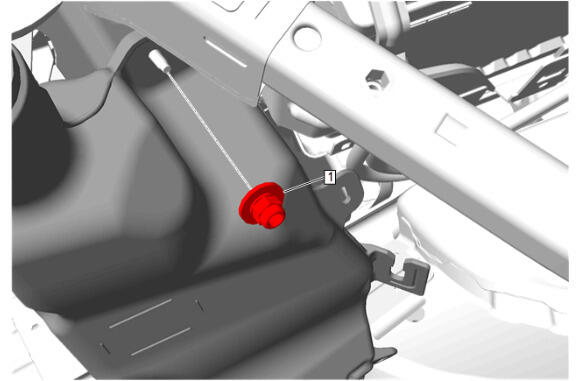

GM6389529Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Windshield Washer Solvent Container

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Washer Solvent Container Nut - - 9 N.m (80 lb in) Windshield Washer Solvent Container Replacement

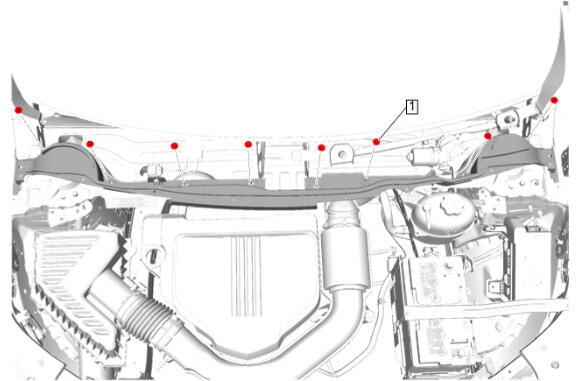

GM6418559Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Dash Upper Extension Panel Extension

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Dash Upper Extension Panel Extension Nut [8x] - - 9 N.m (80 lb in) Dash Upper Extension Panel Extension Replacement

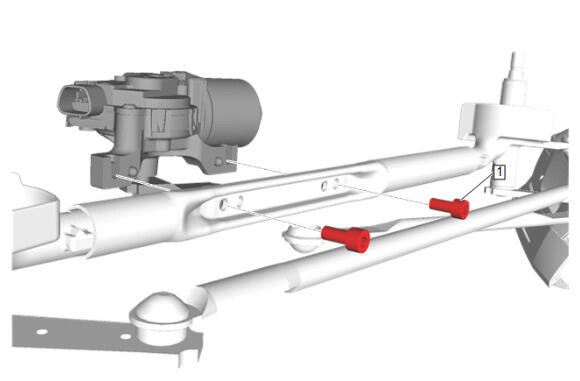

GM6418560Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Windshield Wiper Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Wiper Motor Bolt [2x] - - 7.5 N.m (66 lb in) Windshield Wiper Motor Replacement

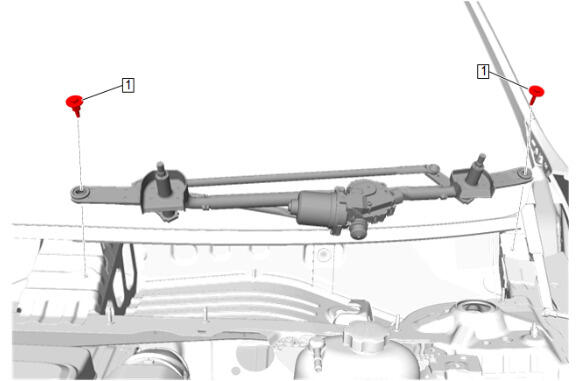

GM6418561Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Windshield Wiper System Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Wiper System Module Bolt [2x] - - 9 N.m (80 lb in) Windshield Wiper System Module Replacement
GM6389483Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Window Wiper Arm

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Window Wiper Arm Nut - - 10 N.m (89 lb in) Rear Window Wiper Motor Replacement
GM6418565Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Window Wiper Arm

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Window Wiper Motor Bolt [3x] - - 9 N.m (80 lb in) Rear Window Wiper Motor Replacement
