Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.
Forward Collision Alert Display
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Collision Alert Display Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Forward Collision Alert Display Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

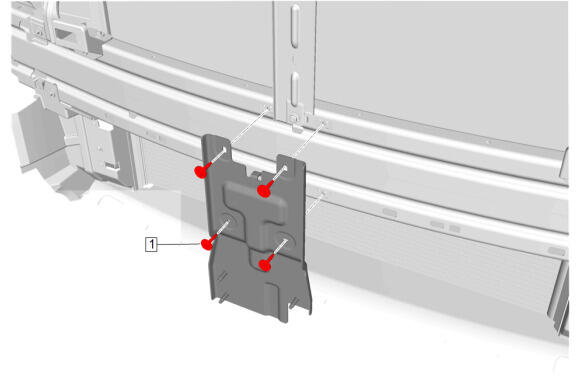

Forward Range Radar Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Range Radar Bracket Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Forward Range Radar Bracket Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

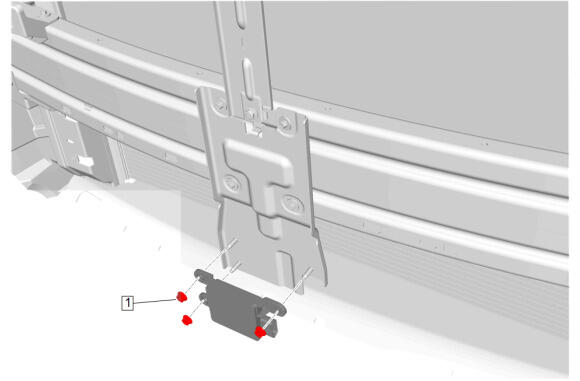

Forward Range Radar Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Range Radar Sensor Nut [3x] | - | - | 9 N.m (80 lb in) | Forward Range Radar Sensor Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

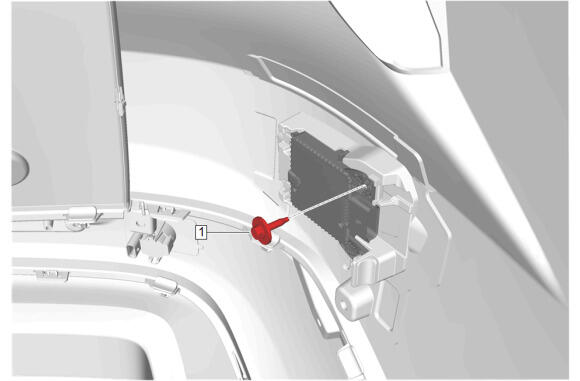

Front Short Range Radar Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt | - | - | 2.5 N.m (22 lb in) | Front Short Range Radar Sensor Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

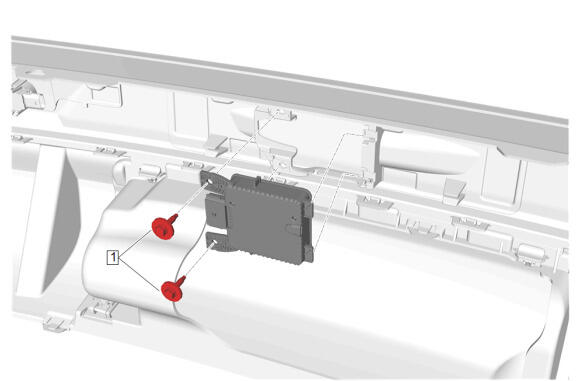

Short Range Radar Rear Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Short Range Radar Rear Sensor Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

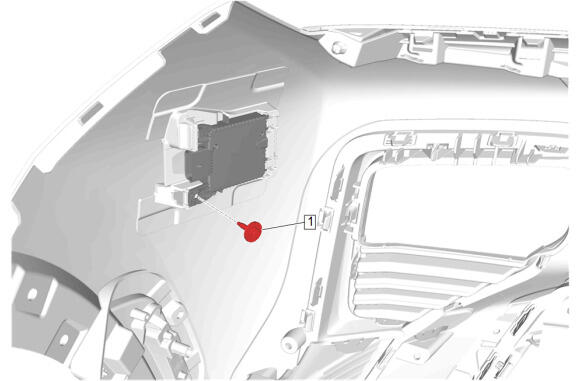

Short Range Radar Rear Side Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt | - | - | 2.5 N.m (22 lb in) | Short Range Radar Rear Side Sensor Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

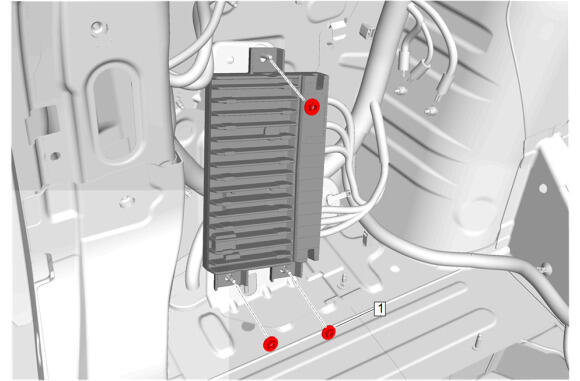

Image Processing Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Image Processing Module Nut [3x] | - | - | 9 N.m (80 lb in) | Image Processing Module Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

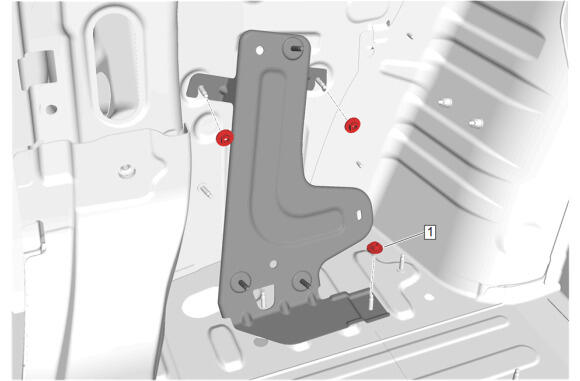

Active Safety Control Module Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Active Safety Control Module Bracket Nut [3x] | - | - | 9 N.m (80 lb in) | Active Safety Control Module Bracket Replacement |
