Installation Procedure

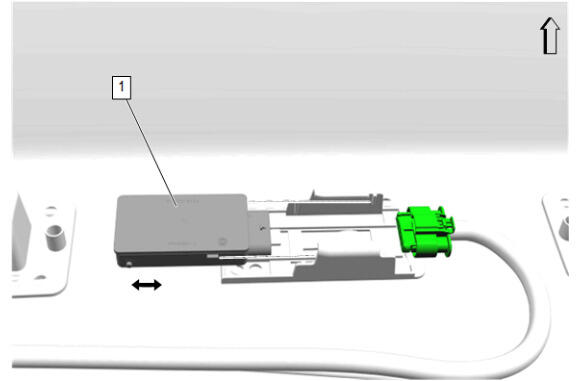

  1. GM6408326Courtesy of GENERAL MOTORS COMPANY

    UHF Low Energy Remote Control Access Sensor Transceiver(1) - Install

  2. Ensure that the retaining tabs are fully secured.
  3. Connect the electrical connector.
  4. Headlining Trim Panel - Install Headlining Trim Panel Removal and Installation (CAJ)Headlining Trim Panel Removal and Installation (-CAJ)
