Home >> Chevrolet >> 2025 >> Traverse Z71 >> Repair and Diagnosis >> Accessories & Equipment >> Anti-Theft Systems >> Keyless Entry System And Remote Functions >> Repair Instructions >> UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 2 (Rear Right) >> Installation Procedure

Installation Procedure

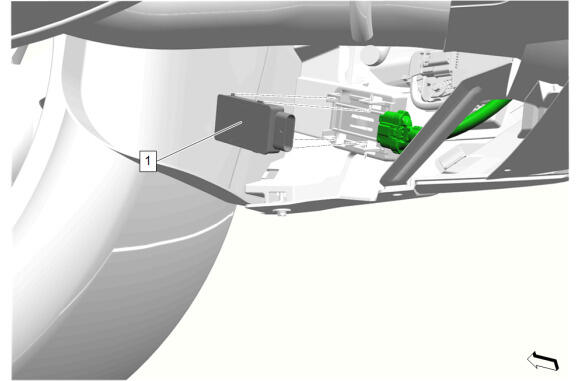

  1. GM6379339Courtesy of GENERAL MOTORS COMPANY

    UHF Low Energy Remote Control Access Sensor Transceiver(1) - Install

  2. Ensure that the retaining tabs are fully secured.
  3. Connect the electrical connectors.
  4. Remove the support and lower the vehicle.
