Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

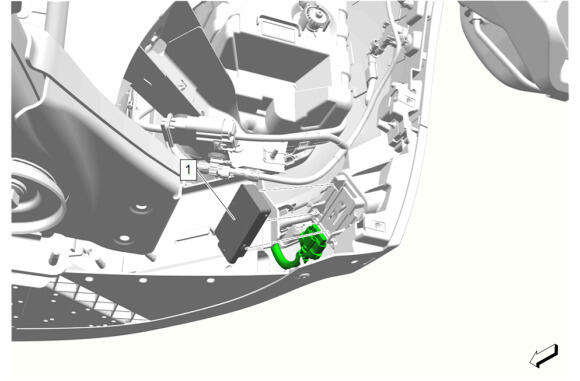

UHF Low Energy Remote Control Access Sensor Transceiver(1) - Install
Ensure that the retaining tabs are fully secured.
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

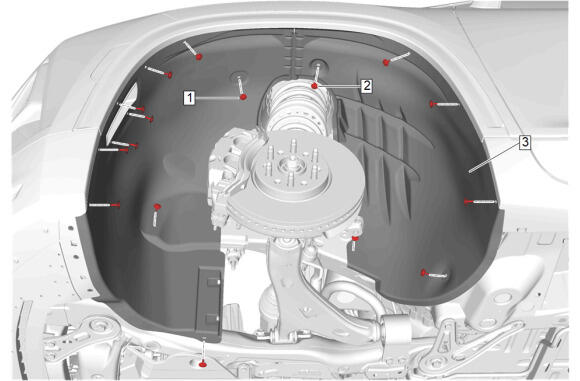

Front Wheelhouse Liner(3) - Install
Front Wheelhouse Liner Retainer(2) - Install

CAUTION:

Front Wheelhouse Liner Bolt(1) - Install and tighten[15x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

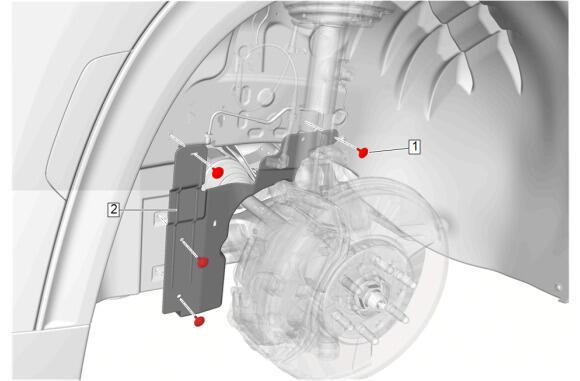

Front Tire Front Air Deflector(2) - Install
Front Tire Front Air Deflector Bolt(1) - Install and tighten[3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

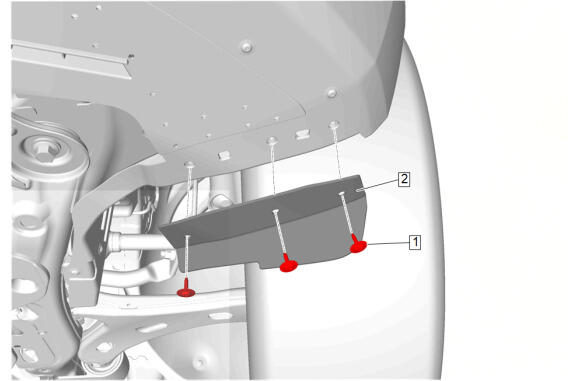

Front Compartment Splash Shield (2) - Install
Front Compartment Splash Shield Bolt(1) - Install and tighten[4x] - Fastener Specifications
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
