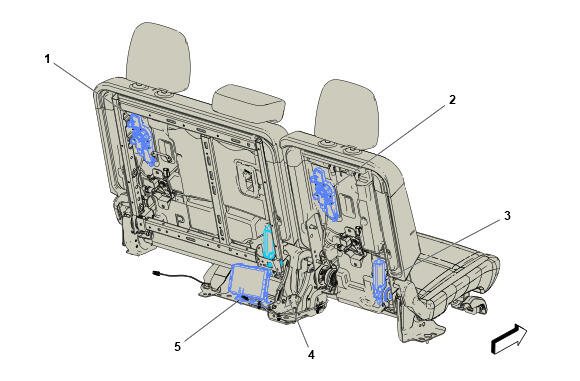

Third Row Seating Components - Back

GM6436885Courtesy of GENERAL MOTORS COMPANY
Items
1. M109LR Folding Seat Back Unlatch Motor - 3rd Row Left (AS8) M109LR Folding 3rd Row Seat Back Actuator - Left
2. M109RR Folding Seat Back Unlatch Motor - 3rd Row Right (AS8) M109RR Folding 3rd Row Seat Back Actuator - Right
3. M108RR Folding Seat Motor - 3rd Row Right (AS8) M108RR 3rd Row Seat Back Pivot Actuator Motor - Right
4. M108LR Folding Seat Motor - 3rd Row Left (AS8) M108LR 3rd Row Seat Back Pivot Actuator Motor - Left
5. K169 Folding Seat Control Module - 3rd Row (AS8) K169 Folding 3rd Row Seat Module X1 , or K169 Folding 3rd Row Seat Module X2
