Behind Front Fascia Components

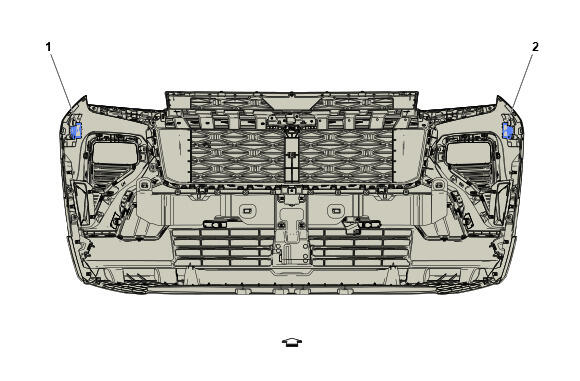

GM6431963Courtesy of GENERAL MOTORS COMPANY
Items
1. B233LF Radar Sensor Module - Short Range Left Front B233LF Short Range Radar Sensor - Left Front
2. B233RF Radar Sensor Module - Short Range Right Front B233RF Short Range Radar Sensor - Right Front
