Front of Engine Compartment Components

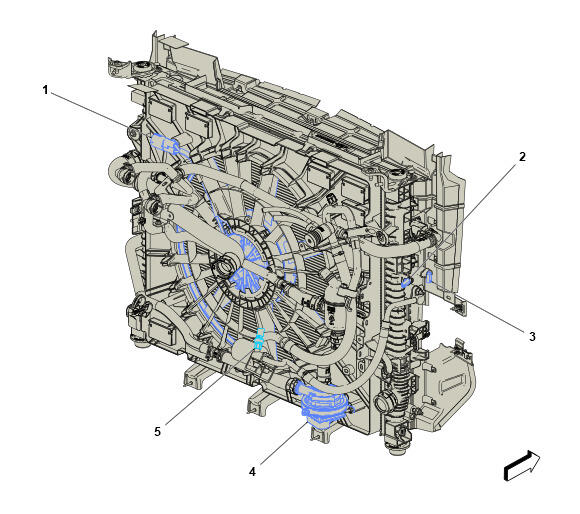

GM6431840Courtesy of GENERAL MOTORS COMPANY
Items
1. G10 Cooling Fan Motor G10 Cooling Fan Motor
2. B203 Radiator Coolant Temperature Sensor B203 Radiator Coolant Temperature Sensor
3. B34K Charge Air Cooler Coolant Temperature Sensor - Inlet B34K Charge Air Cooler Coolant Temperature Sensor - Inlet
4. M10 Charge Air Cooler Coolant Pump M10 Charge Air Cooler Coolant Pump
5. B1 A/C Refrigerant Pressure Sensor B1 Air Conditioning Refrigerant Pressure Sensor
