Installation Procedure

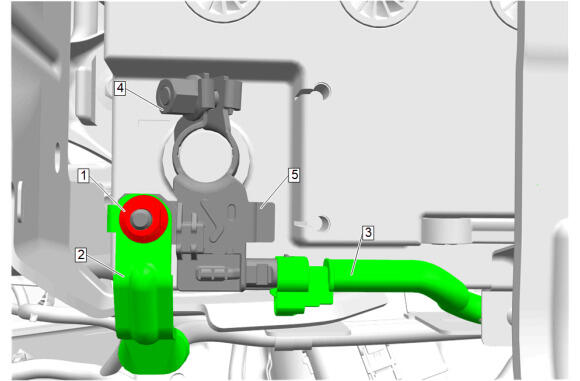

  1. GM6380343Courtesy of GENERAL MOTORS COMPANY

    Battery Monitor Module (5) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Monitor Module (4) - Tighten - Fastener Specifications
  3. Connect the electrical connector. (3)
  4. Battery Positive and Negative Cable (2) - Install
  5. Battery Negative Cable Ground Nut (1) - Install and tighten - Fastener Specifications
