Installation Procedure

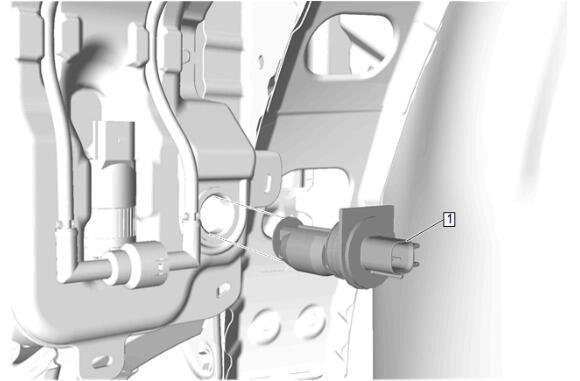

  1. GM6389526Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Solvent Container Level Sensor (1) - Install

  2. Connect all electrical connectors.
  3. Remove the drain pan.
  4. Refill the windshield washer solvent container.
  5. Check for leaks.

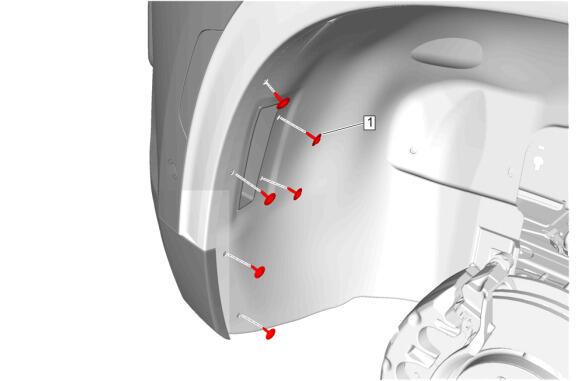

  6. GM6397975Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner - Left Side - Install

    7. CAUTION:

    Refer to Fastener Caution .

  7. Front Wheelhouse Liner Bolt - Left Side (1) - Install and tighten [6x] - Fastener Specifications
  8. GM6397916Courtesy of GENERAL MOTORS COMPANY

    Front Tire Front Air Deflector - Left Side (2) - Install

  9. Front Tire Front Air Deflector Bolt - Left Side (1) - Install and tighten [3x] - Fastener Specifications
  10. Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation
