Installation Procedure

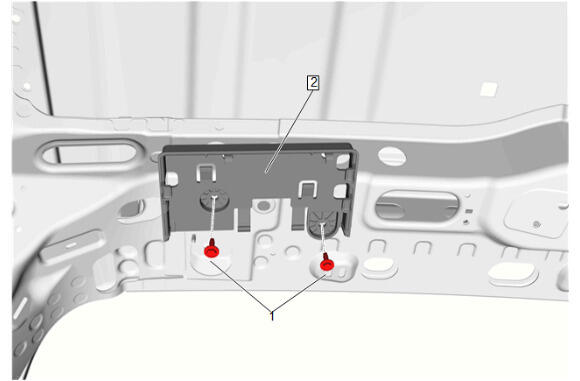

  1. GM6380193Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Communication Interface Module Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. GM6380192Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module (1) - Install

  4. Ensure that the retaining tabs are fully secured.
  5. Connect the electrical connector.
  6. GM6399506Courtesy of GENERAL MOTORS COMPANY

    Headlining Trim Panel (1) - Install

  7. GM6399466Courtesy of GENERAL MOTORS COMPANY

    Body Rear Corner Upper Garnish Molding - Right Side (3) - Install

    8. CAUTION:

    Refer to Fastener Caution .

  9. Body Rear Corner Upper Garnish Molding Bolt - Right Side (2) - Install and tighten - Fastener Specifications
  10. Quarter Window Trim Finish Panel Bolt Cap - Right Side (1) - Install
