Fastener Specifications

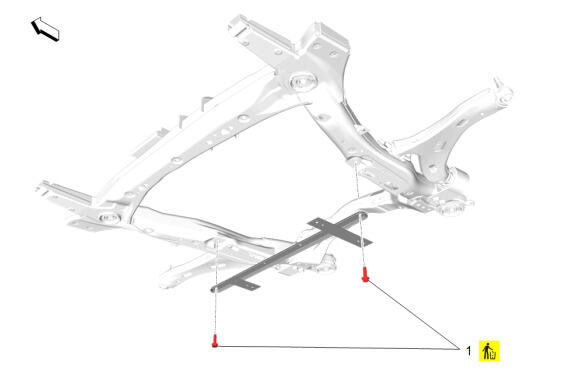

GM6411328Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drivetrain and Front Suspension Cradle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Cradle Brace Bolt [2x] Yes - First Pass: 58 N.m (43 lb ft)
Final Pass: 25 - 40 degrees		 Drivetrain and Front Suspension Cradle Replacement (AWD) Drivetrain and Front Suspension Cradle Replacement (FWD)

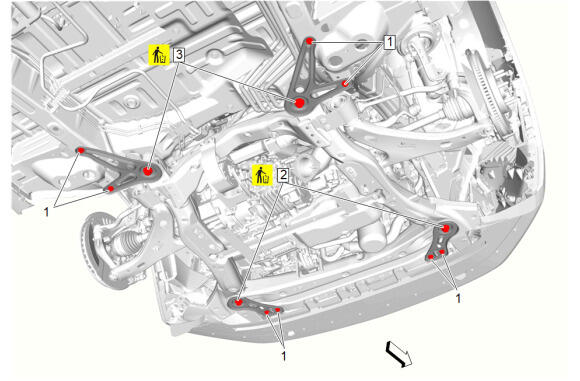

GM6411329Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Drivetrain and Front Suspension Cradle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Cradle Mount Bolt Bracket Bolt [8x] - - 58 N.m (43 lb ft) Drivetrain and Front Suspension Cradle Replacement (AWD) Drivetrain and Front Suspension Cradle Replacement (FWD)
2 Drivetrain and Front Suspension Cradle Front Bolt [2x] Yes - First Pass: 160 N.m (118 lb ft)
Final Pass: 60 - 75 degrees		 Drivetrain and Front Suspension Cradle Replacement (AWD) Drivetrain and Front Suspension Cradle Replacement (FWD)
3 Drivetrain and Front Suspension Cradle Rear Bolt [2x] Yes - First Pass: 160 N.m (118 lb ft)
Final Pass: 60 - 75 degrees		 Drivetrain and Front Suspension Cradle Replacement (AWD) Drivetrain and Front Suspension Cradle Replacement (FWD)

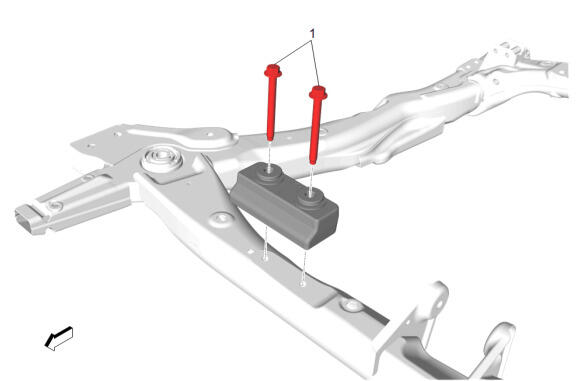

GM6411330Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Cradle Dampener

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Cradle Dampener Bolt [2x] - - 58 N.m (43 lb ft) Drivetrain and Front Suspension Cradle Replacement (AWD) Drivetrain and Front Suspension Cradle Replacement (FWD) , Front Cradle Dampener Replacement (Base) Front Cradle Dampener Replacement (Z71)
GM6411331Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.

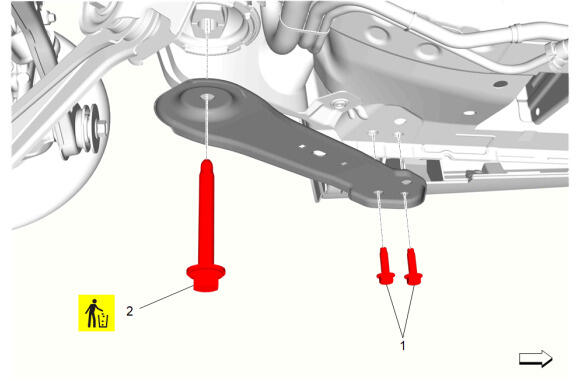

Rear Cradle Mount Bolt Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Cradle Mount Bolt Bracket Bolt [2x] - - 58 N.m (43 lb ft) Rear Suspension Cradle Removal and Installation (AWD) Rear Suspension Cradle Removal and Installation (FWD) , Rear Cradle Mount Bolt Bracket Replacement
2 Rear Suspension Cradle Front Bolt Yes - First Pass: 160 N.m (118 lb ft)
Final Pass: 60 - 75 degrees		 Rear Suspension Cradle Removal and Installation (AWD) Rear Suspension Cradle Removal and Installation (FWD) , Rear Cradle Mount Bolt Bracket Replacement

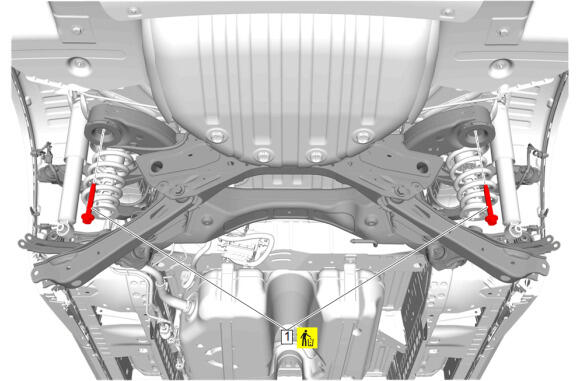

GM6396208Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Suspension Cradle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension Cradle Rear Bolt [2x] Yes - First Pass: 160 N.m (118 lb ft)
Final Pass: 60 - 75 degrees		 Rear Suspension Cradle Removal and Installation (AWD) Rear Suspension Cradle Removal and Installation (FWD)

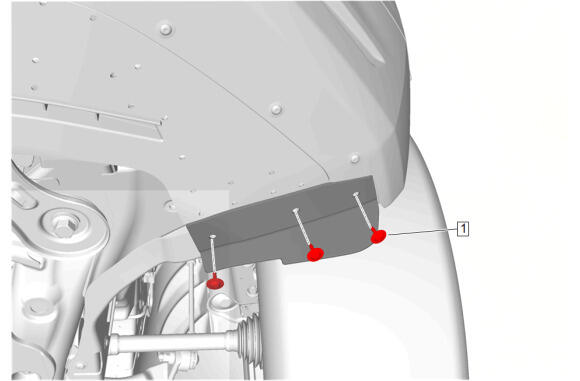

GM6411340Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Tire Front Air Deflector

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Tire Front Air Deflector Bolt [3x] - - 2.5 N.m (22 lb in) Front Tire Front Air Deflector Replacement

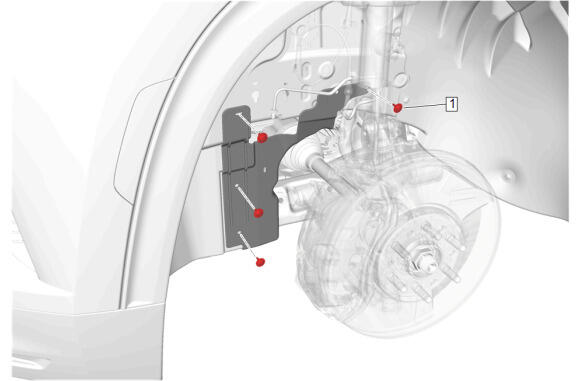

GM6411339Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Compartment Splash Shield

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Compartment Splash Shield Bolt [4x] - - 2.5 N.m (22 lb in) Front Compartment Splash Shield Replacement

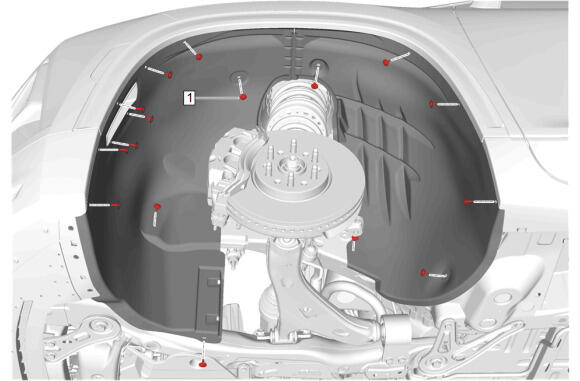

GM6411341Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Wheelhouse Liner

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheelhouse Liner Bolt [15x] - - 2.5 N.m (22 lb in) Front Wheelhouse Liner Replacement

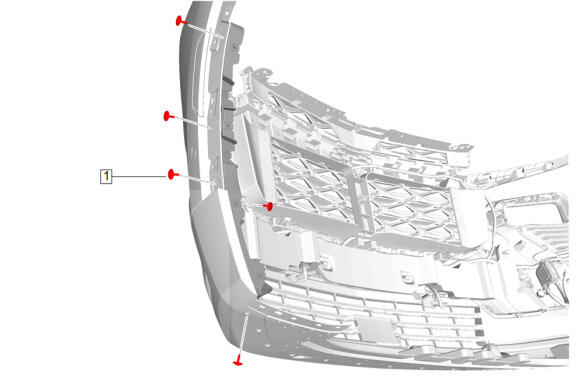

GM6411344Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Wheelhouse Liner Bracket

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheelhouse Liner Bracket Bolt [5x] - - 2.5 N.m (22 lb in) Front Wheelhouse Liner Bracket Replacement (Lower)
GM6411342Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.

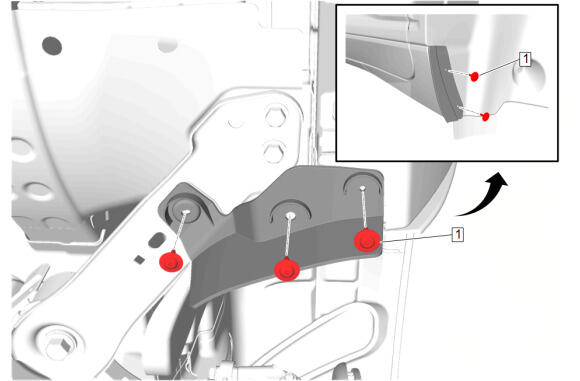

Rear Tire Front Air Deflector

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Tire Front Air Deflector Bolt [5x] - - 2.5 N.m (22 lb in) Rear Tire Front Air Deflector Replacement (Upper) Rear Tire Front Air Deflector Replacement (Lower)

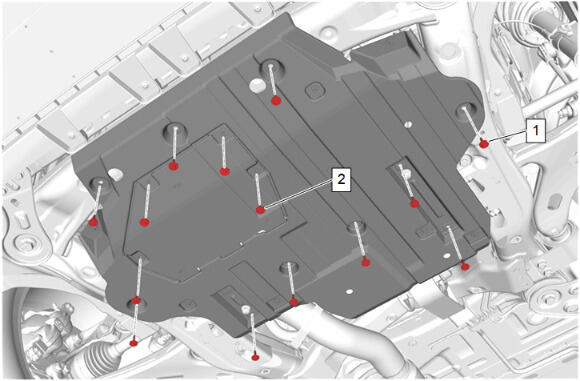

GM6676447Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Underbody Front Air Deflector

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Front Air Deflector Bolt [6x] - - 2.5 N.m (22 lb in) Underbody Front Air Deflector Replacement (Base) Underbody Front Air Deflector Replacement (Oil Fiter Access)
2 Underbody Front Air Deflector Bolt [4x] - - 2.5 N.m (22 lb in) Underbody Front Air Deflector Replacement (Base) Underbody Front Air Deflector Replacement (Oil Fiter Access)

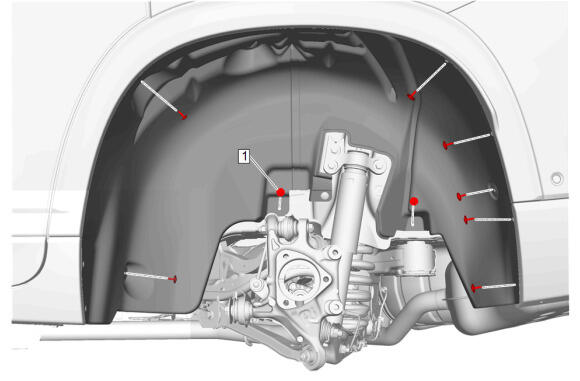

GM6411345Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Wheelhouse Liner

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheelhouse Liner Bolt [9x] - - 2.5 N.m (22 lb in) Rear Wheelhouse Liner Replacement

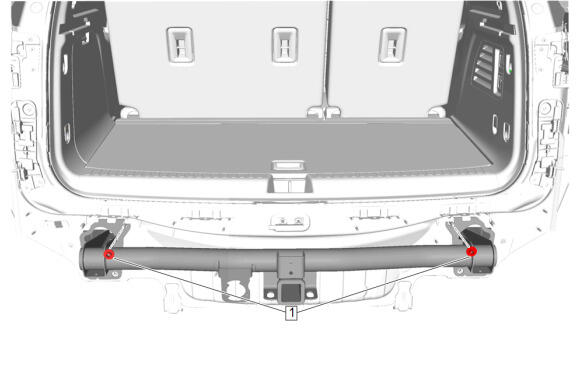

GM6411347Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Trailer Hitch Platform

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Trailer Hitch Platform Nut [2x] - - 58 N.m (43 lb ft) Trailer Hitch Platform Replacement

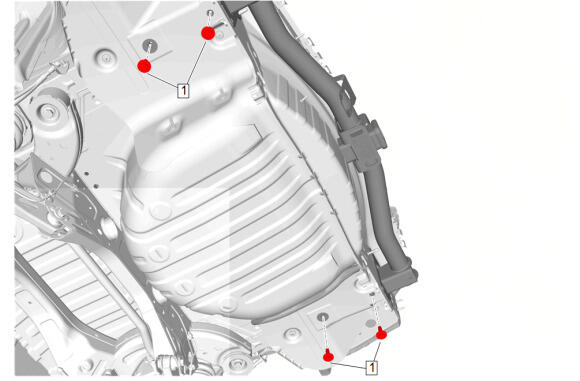

GM6411346Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Trailer Hitch Platform

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Trailer Hitch Platform Bolt [4x] - - 100 N.m (74 lb ft) Trailer Hitch Platform Replacement

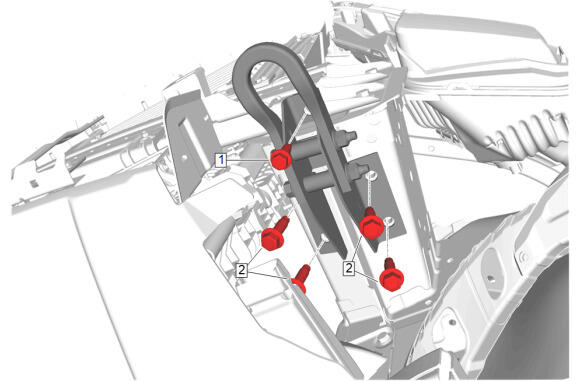

GM6419346Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Tow Hook

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Tow Hook Bolt - - 58 N.m (43 lb ft) Front Tow Hook Replacement (Right Side) Front Tow Hook Replacement (Left Side)
2 Front Tow Hook Bolt [4x] - - 100 N.m (74 lb ft) Front Tow Hook Replacement (Right Side) Front Tow Hook Replacement (Left Side)

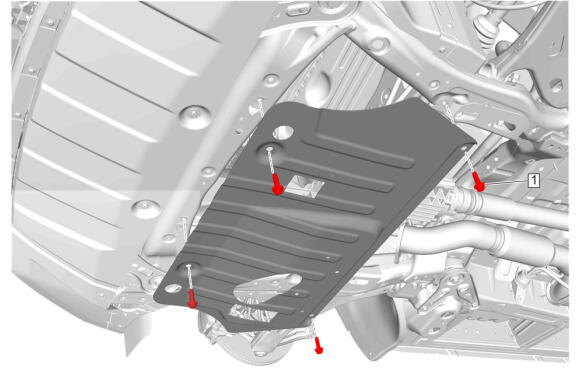

GM6419359Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Underbody Skid Shield

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Skid Shield Bolt [4x] - - 58 N.m (43 lb ft) Underbody Skid Shield Replacement

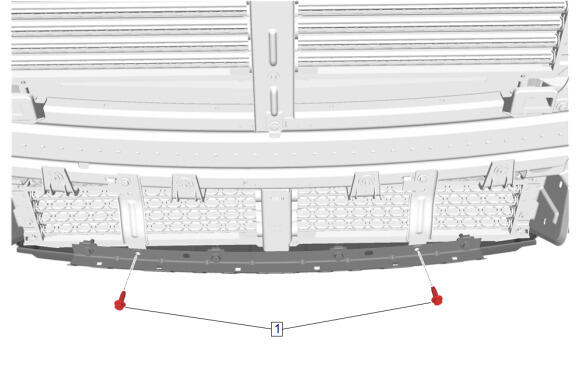

GM6419342Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Underbody Splash Shield

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Splash Shield Bracket Bolt
[2x]		 - - 22 N.m (16 lb ft) Underbody Splash Shield Replacement

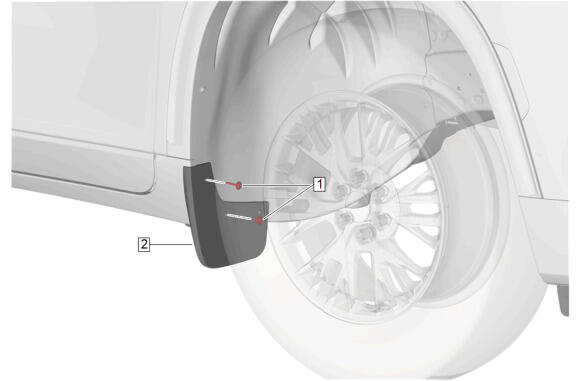

GM6736338Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Fender Mud Guard

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Fender Mud Guard Screw [2x] - - 2.5N.m (22 lb in) Front Fender Mud Guard Replacement
