Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

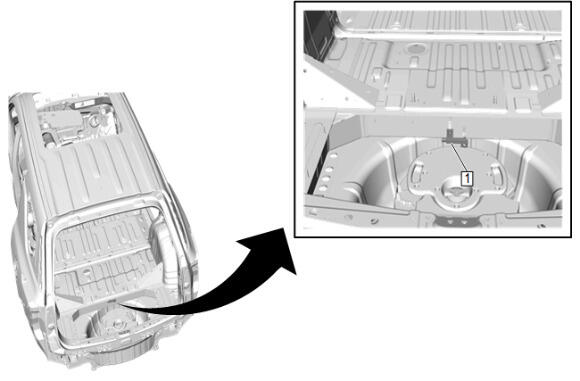

Low Frequency Rear Compartment Antenna(1) - Install
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Stowage Compartment Divider (2) - Install

CAUTION:

Refer to Fastener Caution .

Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install and tighten[4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Load Floor Trim Panel(1) - Close
