Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

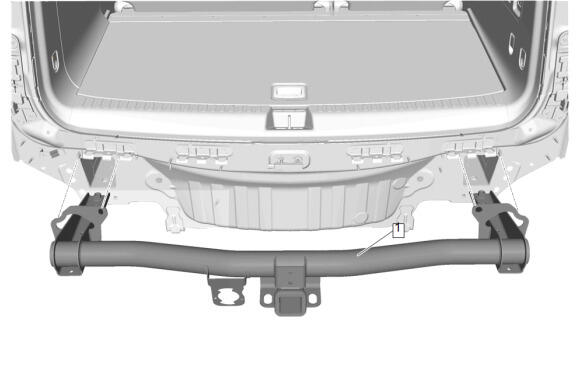

Trailer Hitch Platform (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

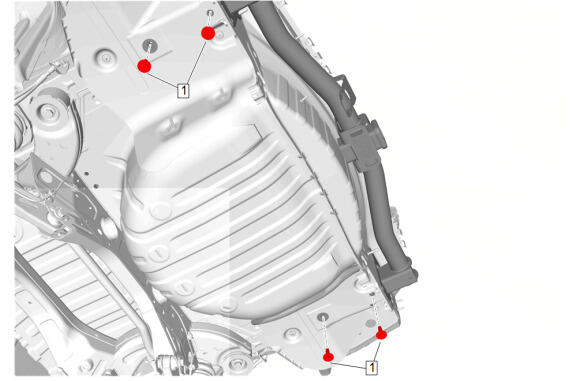

Trailer Hitch Platform Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

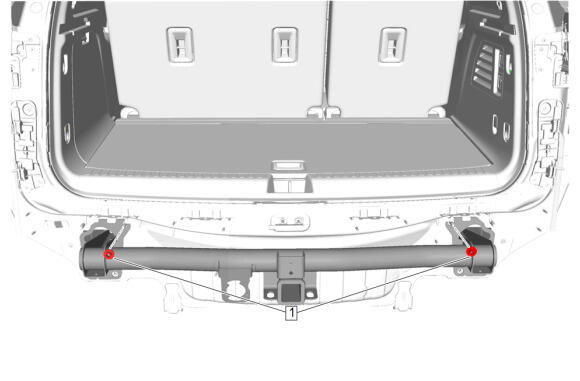

Trailer Hitch Platform Nut (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connectors.
Install the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

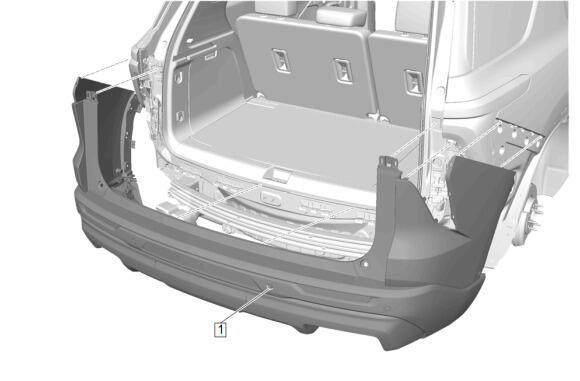

Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

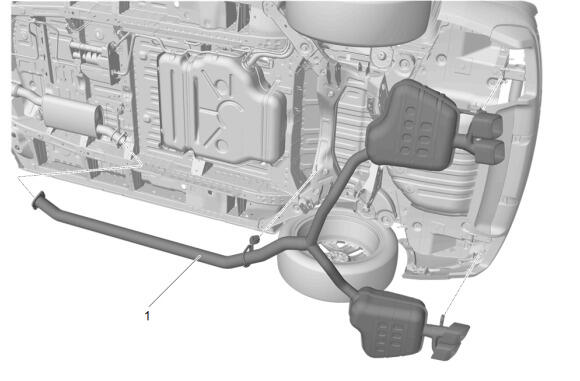

With the aid of an assistant, install the exhaust muffler (1) to the vehicle and support the exhaust system.
Install the exhaust intermediate muffler insulator to the exhaust muffler.
Courtesy of GENERAL MOTORS COMPANY

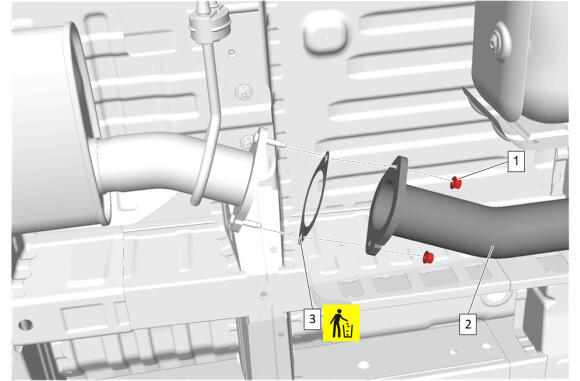

Exhaust System Intermediate Gasket (3) - Install NEW
Exhaust Muffler (2) - Connect
Exhaust Muffler Flange Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

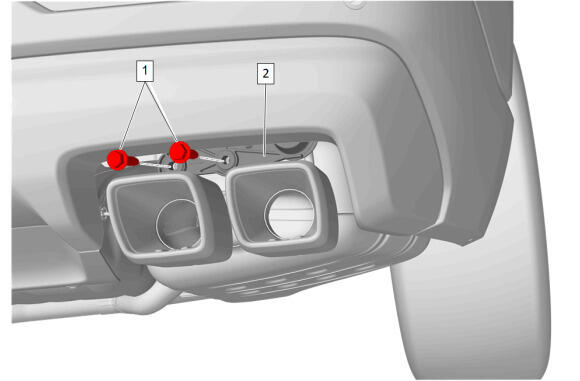

Exhaust Rear Muffler Rear Hanger - Left Side and Right Side (2) - Install [2x]
Exhaust Rear Muffler Rear Hanger Bolt - Left Side and Right Side (1) - Install and tighten [4x] - Fastener Specifications
Remove the support from the exhaust system.
Remove the support and lower the vehicle.
Inspect the exhaust system for leaks.
