Removal Procedure

  1. Front Floor Console = Remove - FRONT FLOOR CONSOLE REMOVAL AND INSTALLATION

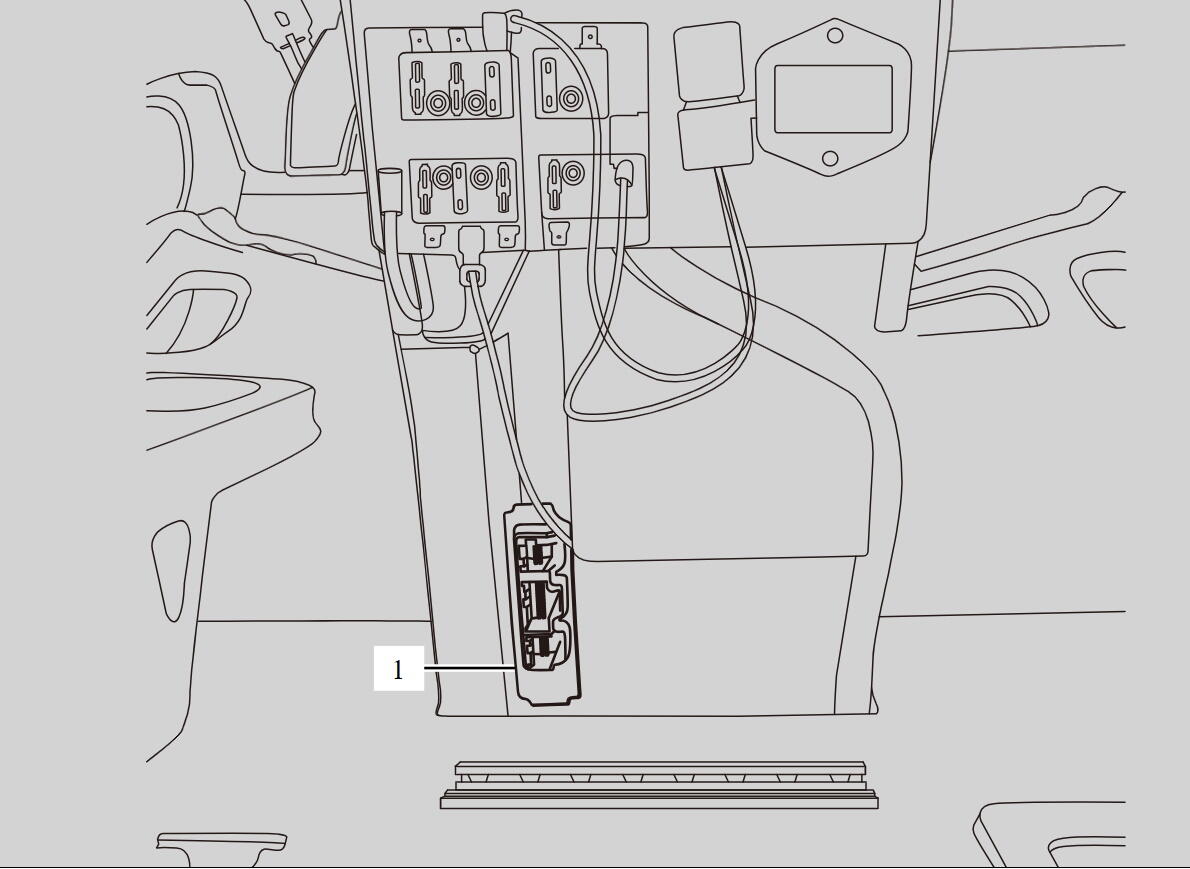

    GM6886269Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the electrical connectors.
  3. Release the retaining tabs.
  4. Special Purpose Vehicle Control Module (1) = Remove
