Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.

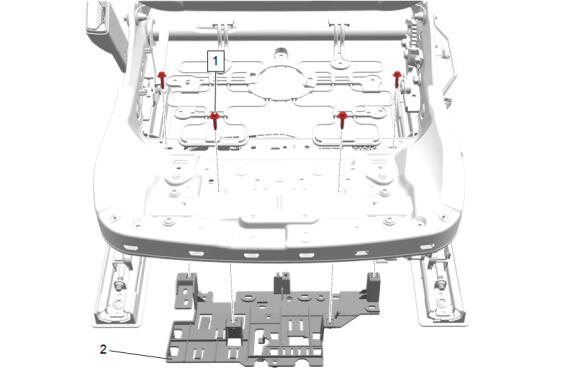

Front Seat Wiring Harness Connector Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Seat Wiring Harness Connector Bracket Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.
Front Seat Vertical Adjuster Actuator
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Vertical Adjuster Actuator Nut [3x] | - | - | 23 N.m (17 lb ft) | Front Seat Vertical Adjuster Actuator Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

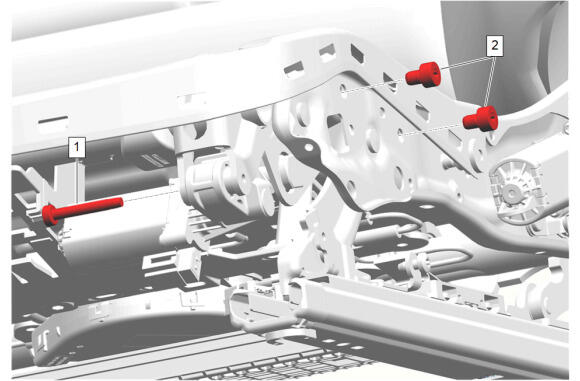

Front Seat Tilt Adjuster Actuator
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Vertical Adjuster Actuator Bolt | - | - | 8 N.m (71 lb in) | Front Seat Tilt Adjuster Actuator Replacement |
| 2 | Front Seat Adjuster Front Bracket Bolt [2x] | - | Yes | 20 N.m (15 lb ft) | Front Seat Tilt Adjuster Actuator Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.
Folding 3rd Row Seat Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Seat Bolt [2x] | - | - | 10 N.m (89 lb in) | Folding 3rd Row Seat Module Replacement |
| 2 | Folding 3rd Row Seat Module Screw [2x] | - | - | 2.5 N.m (22 lb in) | Folding 3rd Row Seat Module Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

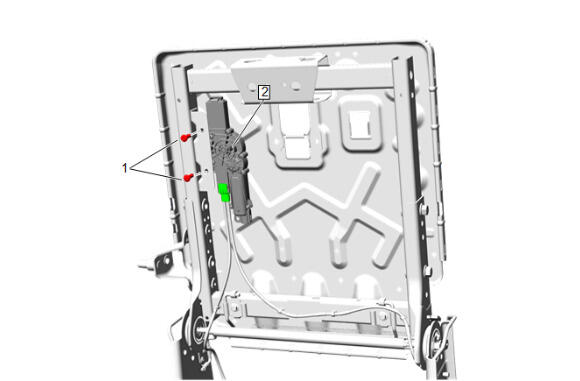

3rd Row Seat Back Pivot Actuator Motor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | 3rd Row Seat Bolt [2x] | - | Yes | 9 N.m (80 lb in) | 3rd Row Seat Back Pivot Actuator Motor Replacement - Back Cushion |
NOTE:
Callout items in the following chart represent components shown in graphic above.

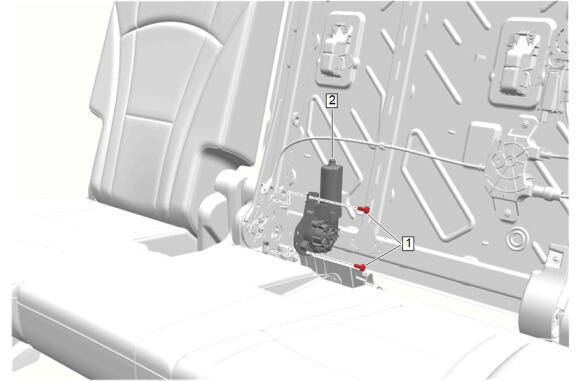

Rear Seat Adjuster Actuator
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Seat Adjuster Actuator Bolt [2x] | - | - | 6 N.m (53 lb in) | Rear Seat Adjuster Actuator Replacement |
