Fuel Injection Fuel Rail Insulator Replacement

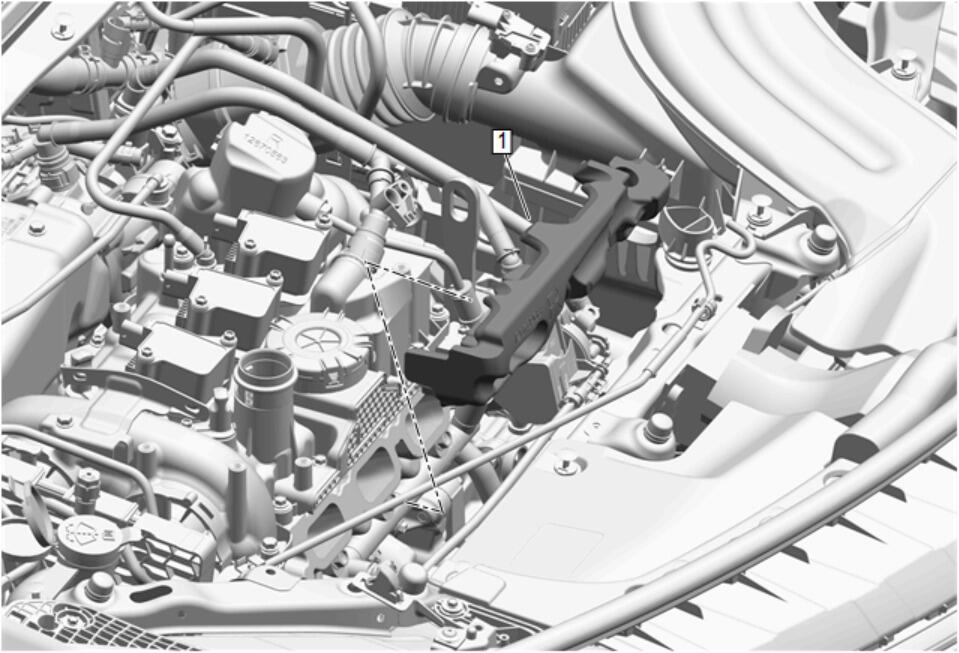

GM5220123Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise canceling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

Preliminary Procedure Engine Coolant Flow Control Valve Replacement (L3T)
1 Fuel Injection Fuel Rail Insulator
