Removal Procedure

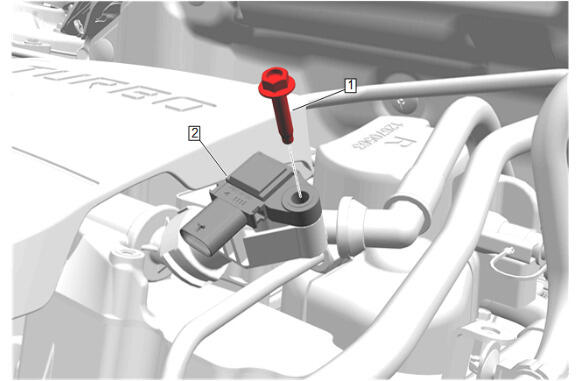

  1. GM6205677Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  2. Crankcase Pressure Sensor Bolt (1) - Remove
  3. Crankcase Pressure Sensor (2) - Remove
