Installation Procedure

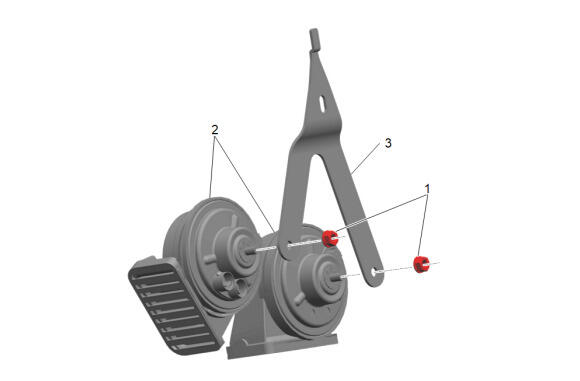

  1. GM6737144Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The NEW horns need to be removed from the bracket to allow the bracket to be installed into the vehicle.

    Horn Nut (1) - Remove [2x]

  2. Remove the 2 horns (2) from the bracket (3).

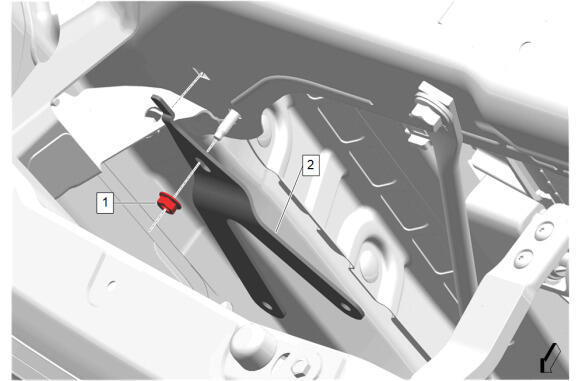

  3. GM6737139Courtesy of GENERAL MOTORS COMPANY

    Bracket (2) - Install

    4. CAUTION:

    Refer to Fastener Caution .

  4. Horn Nut (1) - Install and tighten - Fastener Specifications

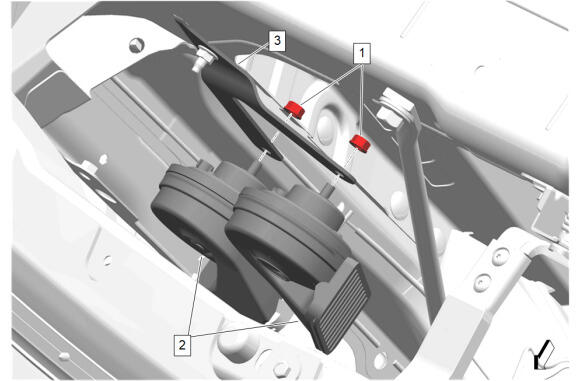

  5. GM6737134Courtesy of GENERAL MOTORS COMPANY

    Install the 2 horns (2) to the bracket (3).

  6. Horn Nut (1) - Install and tighten - [2x] Fastener Specifications
  7. Connect the electrical connectors.
  8. GM5541732Courtesy of GENERAL MOTORS COMPANY

    Intake Air Splash Shield (2) - Install

  9. Intake Air Baffle Retainer (1) - Install [9x]
  10. GM5541781Courtesy of GENERAL MOTORS COMPANY

    Hood Secondary Latch Release Handle (2) - Install

  11. Hood Latch Actuator Bolt (1) - Install and tighten [2x] - Fastener Specifications
