Installation Procedure

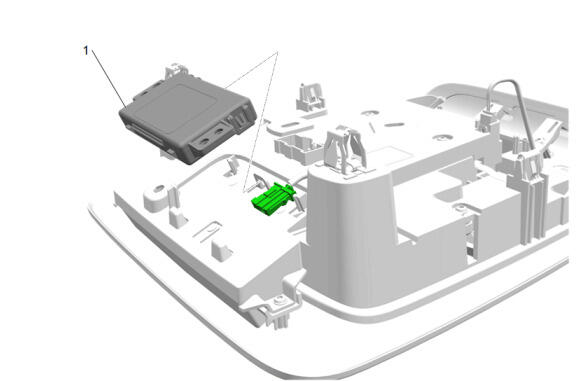

  1. GM6694957Courtesy of GENERAL MOTORS COMPANY

    Garage Door Opener Transmitter (1) - Install

  2. Connect the electrical connectors.

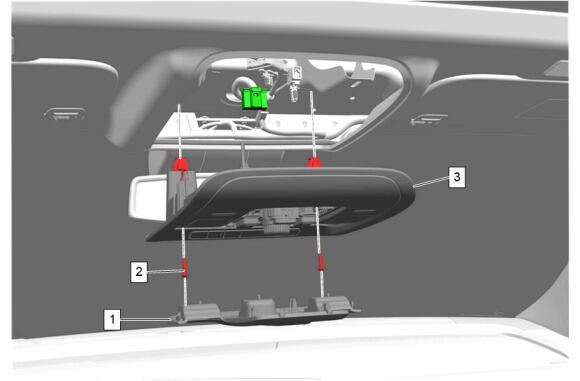

  3. GM6694955Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Roof Console (3) - Install
    5. CAUTION:

    Refer to Fastener Caution .

  5. Roof Console Bolt (2) - Install and tighten [2x] - Fastener Specifications
  6. Roof Console Opening Trim Plate (1) - Install
