Removal Procedure
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Using the scan tool, deflate the automatic level control air supply reservoir and the 4 air springs.
- Remove the spare tire and wheel assembly.
Automatic Level Control Air Compressor Tube Clip (2) - Remove
- Automatic Level Control Air Compressor Inlet Tube (1) - Remove
Retainer (1) - Remove

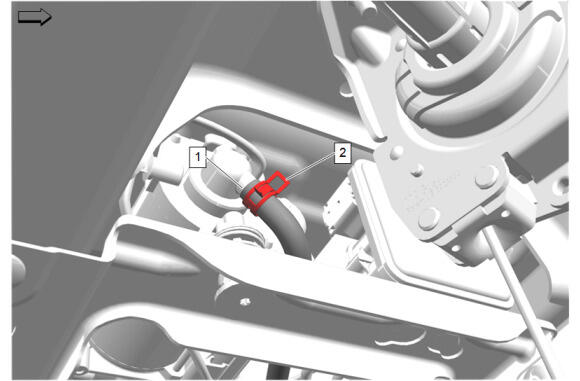

Hose Clamp (2) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Automatic Level Control Air Compressor Tube (1) - Reposition
Disconnect the electrical connectors and release the wiring harness retainers as necessary. (1, 2, 3)

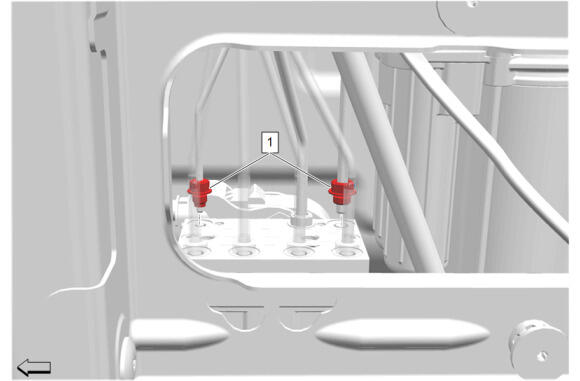

Automatic Level Control Air Compressor Tube Fitting (1) - Remove [2x]
Automatic Level Control Module Bolt (1) - Remove [4x]
Automatic Level Control Module (1) - Remove

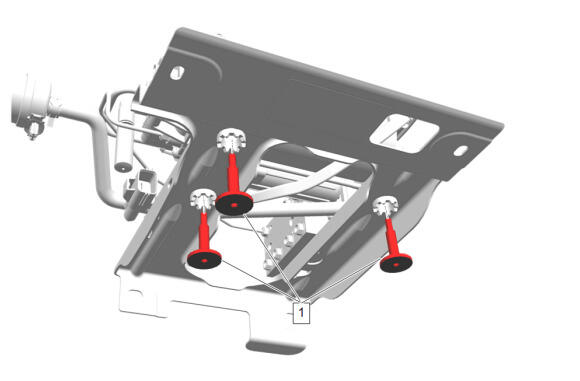

Automatic Level Control Air Compressor Nut (1) - Remove [3x]
- NOTE:
The spring/insulators must be installed in the correct location. Note the location upon removal of the spring/insulator.
Disconnect the wiring harness retainers as necessary.

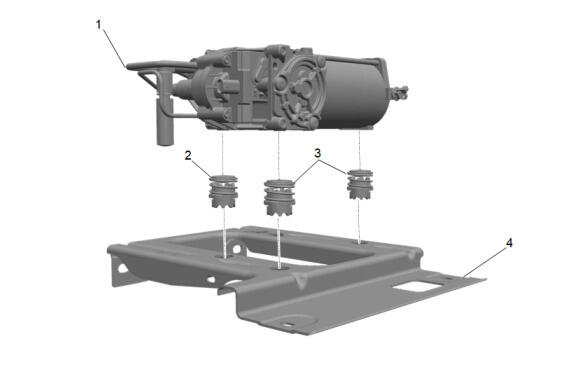

- Automatic Level Control Air Compressor (1) @ Air Suspension Control Module Bracket (4) - Remove
- Automatic Level Control Air Compressor Insulator (2) @ Air Suspension Control Module Bracket (4) - Remove
- Automatic Level Control Air Compressor Insulator (3) @ Air Suspension Control Module Bracket (4) - Remove [2x]
Service mode will be automatically enabled when the ride height sensors detect the vehicle has been lifted off the ground. Service mode will automatically be disabled when the vehicle reaches 16 km/h (10 MPH).
