Fastener Specifications

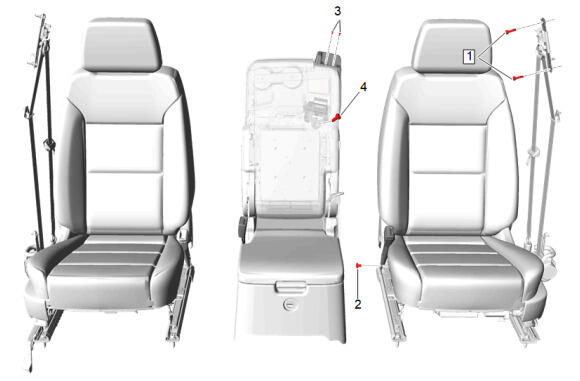

GM5539598Courtesy of GENERAL MOTORS COMPANY
Front Seat Belts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Adjust Bolt [2x] - Yes 45 N.m (33 lb ft) Front Seat Belt Guide Adjuster Replacement
2 Front Seat Belt Buckle Bolt - Yes 45 N.m (33 lb ft) Front Seat Belt Buckle Replacement
3 Front Seat Belt Opening Bezel Bolt [2x] - - 1.1 N.m (10 lb in) Front Seat Belt Opening Bezel Replacement (AZ3)
4 Front Seat Belt Retractor Bolt - - 45 N.m (33 lb ft) Front Seat Center Belt Retractor Replacement (AZ3)

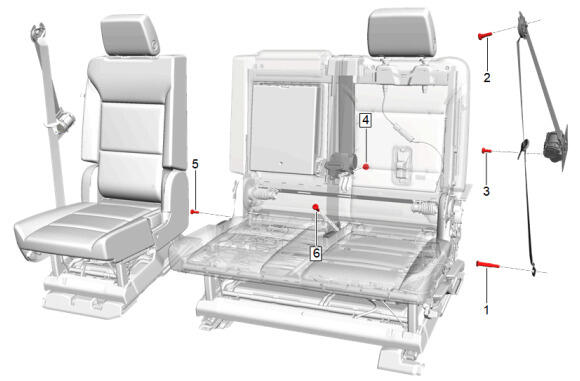

GM5613801Courtesy of GENERAL MOTORS COMPANY
Second Row Seat Belts

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Belt Anchor Plate Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
2 Rear Seat Belt Guide Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
3 Rear Seat Belt Retractor Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
4 Rear Center Seat Belt Buckle Bolt (60 Percent Seat) - - 75 N.m (55 lb ft) Rear Seat Center Belt Retractor Replacement (AT6 / ATT)
5 Rear Seat Belt Buckle Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Buckle Replacement (Right Side) ((AT6 / ATT) and UH5) , or Rear Seat Belt Buckle Replacement (Bucket) ((ATN / ATV) and UH5) , or Rear Seat Belt Buckle Replacement (Right Side, Center) (- UH5) , or Rear Seat Belt Buckle Replacement (Center) ((AT6 / ATT) and UH5)
6 Rear Seat Center Belt Anchor Plate Bolt (60 Percent Seat) - - 45 N.m (33 lb ft) Rear Seat Belt Buckle Replacement (Left Side) ((AT6 / ATT) and UH5) , or Rear Seat Belt Buckle Replacement (Bucket) ((ATN / ATV) and UH5) , or , or Rear Seat Belt Buckle Replacement (Left Side) ((AT6 / ATT) and UH5) , or Rear Seat Belt Buckle Replacement (Left Side) (- UH5)

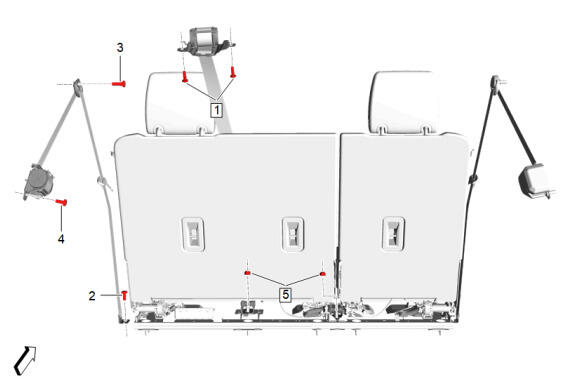

GM5539600Courtesy of GENERAL MOTORS COMPANY
Third Row Seat Belts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 3rd Row Center Seat Belt Retractor Bolt [2x] - Yes 45 N.m (33 lb ft) 3rd Row Center Seat Belt Retractor Replacement (Short Wheelbase) (ARN / AS8) , or 3rd Row Center Seat Belt Retractor Replacement (Long Wheelbase) (ARN / AS8)
2 3rd Row Seat Belt Anchor Bolt - - 45 N.m (33 lb ft) 3rd Row Seat Belt Retractor Replacement - Left Side (ARN / AS8)
3rd Row Seat Belt Retractor Replacement - Right Side (ARN / AS8)
3 3rd Row Seat Belt Guide Bolt - - 45 N.m (33 lb ft) 3rd Row Seat Belt Retractor Replacement - Left Side (ARN / AS8)
3rd Row Seat Belt Retractor Replacement - Right Side (ARN / AS8)
4 3rd Row Seat Belt Retractor Bolt - - 45 N.m (33 lb ft) 3rd Row Seat Belt Retractor Replacement - Left Side (ARN / AS8)
3rd Row Seat Belt Retractor Replacement - Right Side (ARN / AS8)
5 3rd Row Seat Nut [2x] - - 45 N.m (33 lb ft) 3rd Row Seat Belt Buckle Replacement (Left Side) (ARN / AS8) , or 3rd Row Seat Belt Buckle Replacement (Right Side, Center) (ARN / AS8)
