Installation Procedure

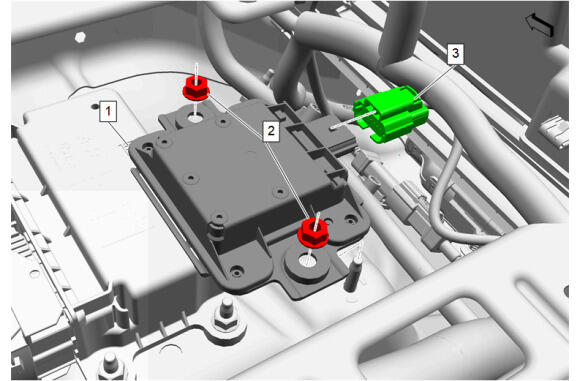

  1. GM5619664Courtesy of GENERAL MOTORS COMPANY

    Vehicle Dynamic Sensor (1) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Vehicle Dynamic Sensor Nut (2) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector. (3)

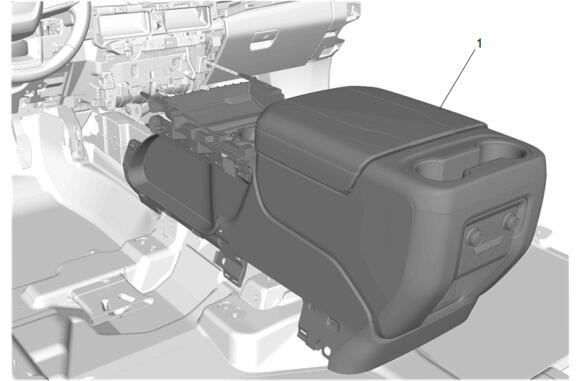

  4. GM6725500Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the front floor console (1) into the vehicle.

  5. Front Floor Console (1) - Install - Front Floor Console Removal and Installation (DCH and UV6) , or Front Floor Console Removal and Installation ((D07 / DCK) - UV6) , or Front Floor Console Removal and Installation (DCH - UV6) , or Front Floor Console Removal and Installation ((D07 / DCK) and UV6)
  6. Perform the Vehicle Dynamic Sensor Offset Calibration. Vehicle Dynamic Sensor Offset Calibration
