Installation Procedure
Rear Window (1) - Install Adhesive Installation of Rear Windows

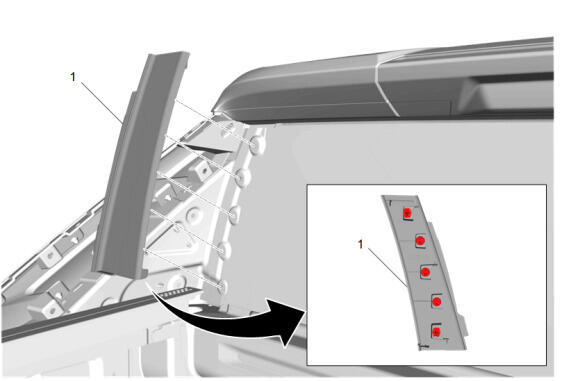

Rear Window Reveal Molding - Left Side and Right Side (1) - Install [2x]

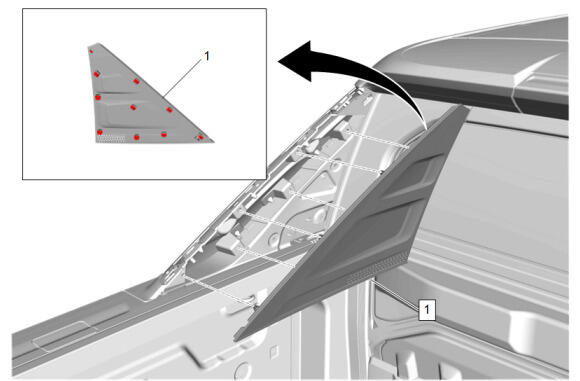

Cargo Box Bridge Side Inner Panel - Left Side and Right Side (1) - Install [2x]

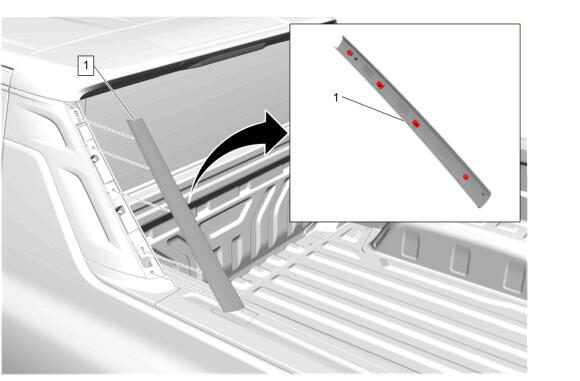

Cargo Box Bridge Cover - Left Side and Right Side (1) - Install [2x]
Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
- Remove the seat and carpet covers used to protect from broken glass.

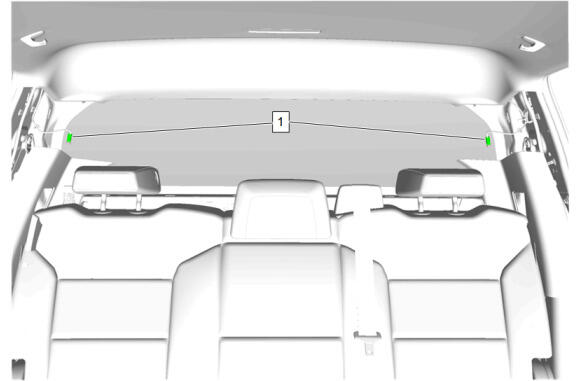

- Connect the electrical connector (1) to the rear window defogger bus bar.

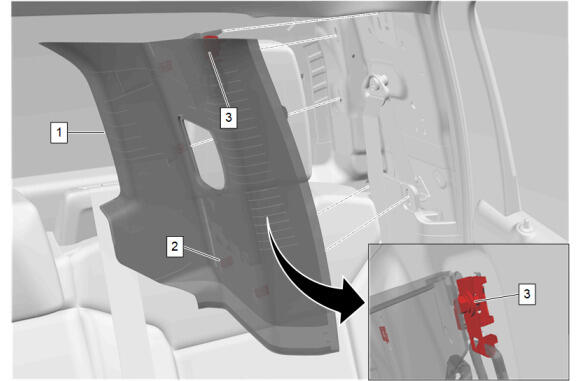

Body Lock Pillar Upper Trim Panel Bolt - Left Side and Right Side (3) - Install and tighten [2x] - Fastener Specifications

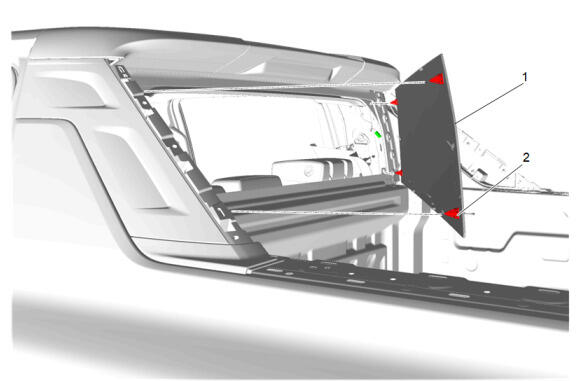

- Align the retaining clips (2) with the slots in the body and press the body side rear window garnish molding (1) on left and right side into place.
- Body Side Rear Window Garnish Molding - Left Side and Right Side (1) - Install [2x]

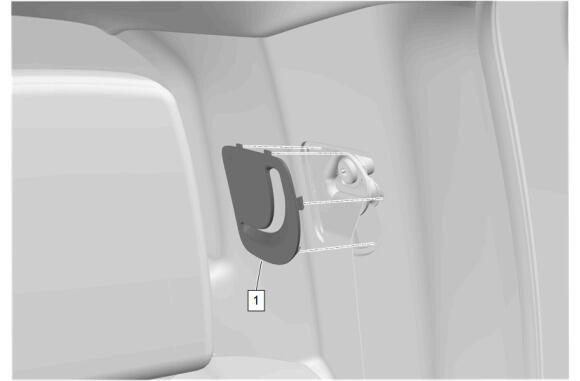

Rear Seat Belt Opening Bezel - Left Side and Right Side (1) - Install [2x]

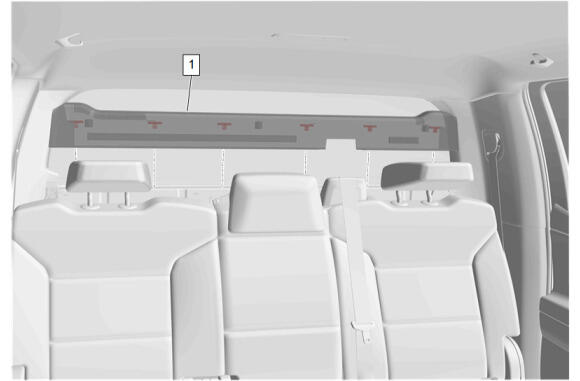

Rear Window Upper Garnish Molding (1) - Install
- Enable the SIR System. SIR Disabling and Enabling
