Installation Procedure
Install the headliner.

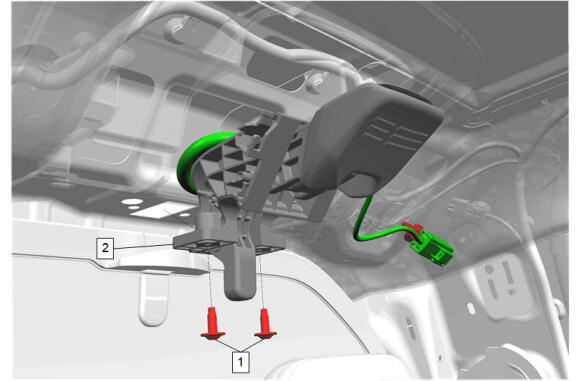

- Midgate Window Latch (2) - Install
- Midgate Window Latch Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Connect the electrical connector and wiring harness retainer.
Headlining Trim Panel Retainer Plate (1) - Install
Body Lock Pillar Upper Trim Panel Bolt (3) - Install and tighten - Fastener Specifications
- Align the retaining clips (2) with the slots in the body and press the body side rear window garnish molding (1) into place.
- Body Side Rear Window Garnish Molding (1) - Install
Rear Seat Belt Opening Bezel (1) - Install
Close the midgate (1).
Midgate Window (1) - Install
Midgate Window Latch (1) - Secure
Fold the left and right rear seat back cushions (1) up and into the locked position.
Fold the left and right rear seat cushions (1) up and into the locked position.
Coat Hook (1) - Install

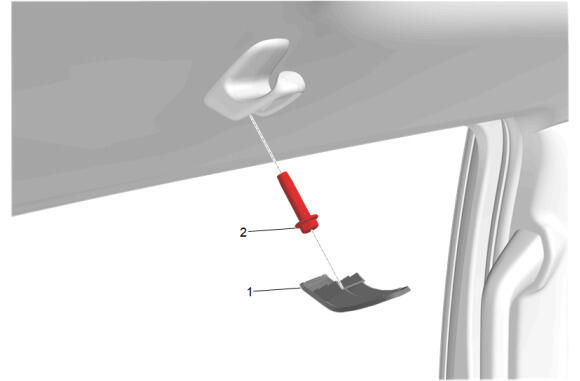

Coat Hook Bolt (2) - Install and tighten - Fastener Specifications
- Install the coat hook bolt cap (1) and rotate upward until fully seated.
- Enable the SIR System. SIR Disabling and Enabling
CAUTION:
Refer to Fastener Caution .
