Installation Procedure

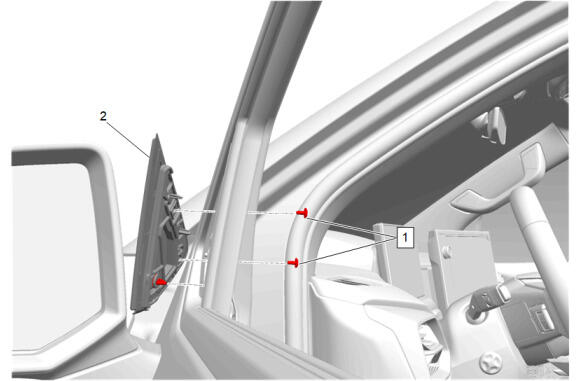

  1. GM6293618Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Frame Front Applique (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Side Door Window Frame Front Applique Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. GM5569615Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Inner Panel Hole Plug (1) - Install [2x]

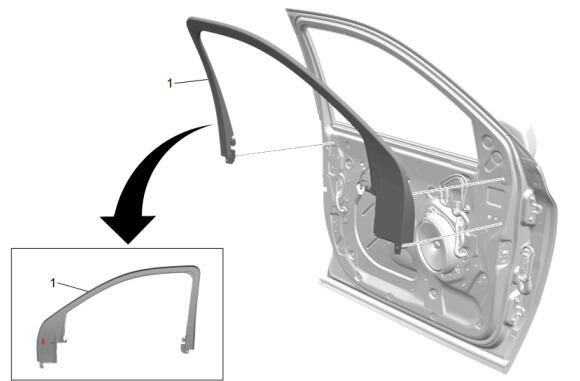

  4. GM6231136Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the door weatherstrip is not trapped below the front side door window garnish molding (1) once completely installed. Reposition the weatherstrip as necessary.

    Front Side Door Window Garnish Molding (1) - Install

  5. Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
