Installation Procedure

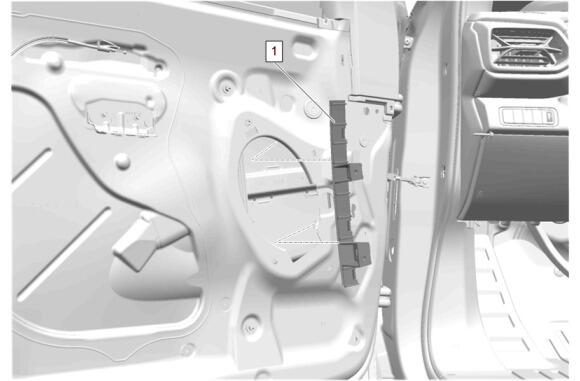

Front Side Door Window Channel Front Retainer (1) - Install
- Install the front side door window weatherstrip into the front side door window channel front retainer.
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

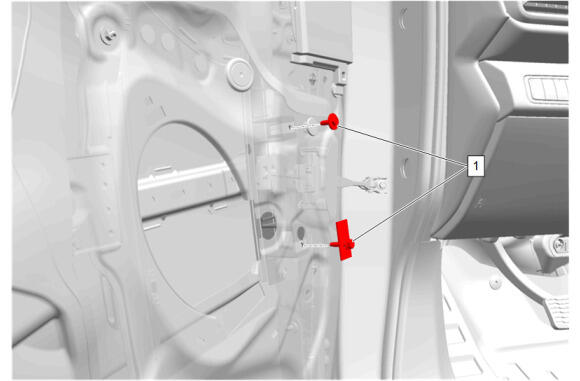

- Front Side Door Window Channel Front Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector and install the wiring harness retainers as necessary.

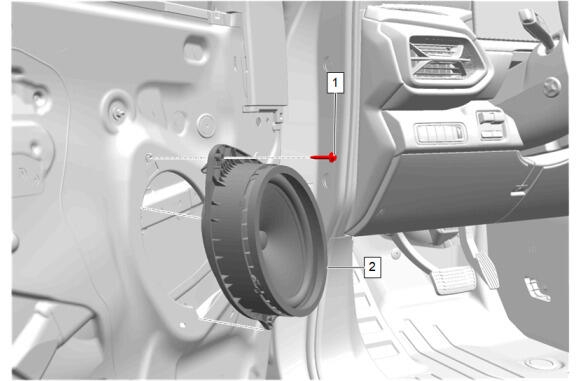

- Radio Front Side Door Speaker (2) - Install
- Radio Front Side Door Speaker Bolt (1) - Install and tighten - Fastener Specifications

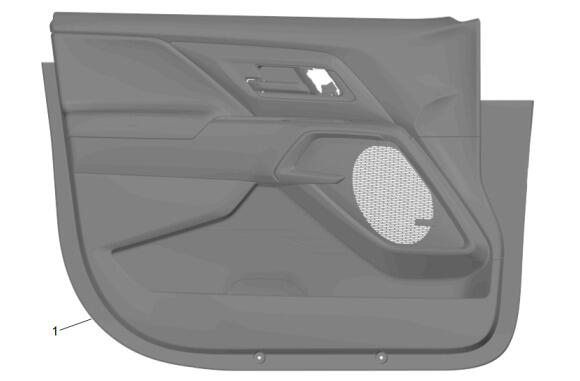

Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
- Ensure the window system operates properly.
CAUTION:
Refer to Fastener Caution .
