Fastener Specifications

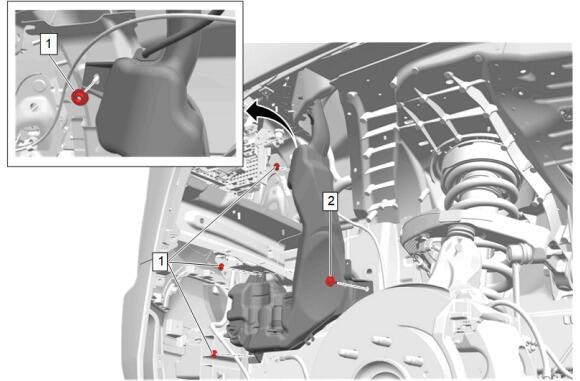

Windshield Washer Solvent Container
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Windshield Washer Solvent Container Nut [3x] | - | - | 9 N.m (80 lb in) | Windshield Washer Solvent Container Replacement |
| 2 | Windshield Washer Solvent Container Bolt | - | - | 9 N.m (80 lb in) | Windshield Washer Solvent Container Replacement |

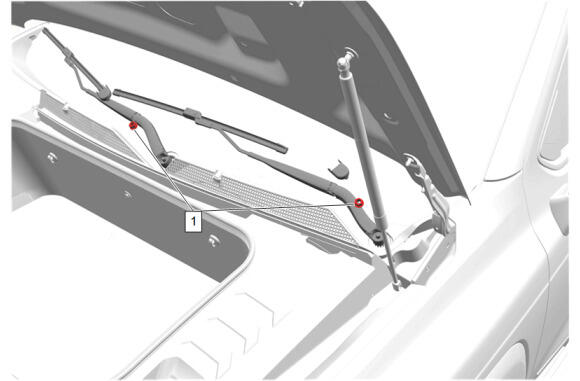

Windshield Wiper Arm
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Windshield Wiper Arm Nut [2x] | - | - | 30 N.m (22 lb ft) | Windshield Wiper Arm Replacement |

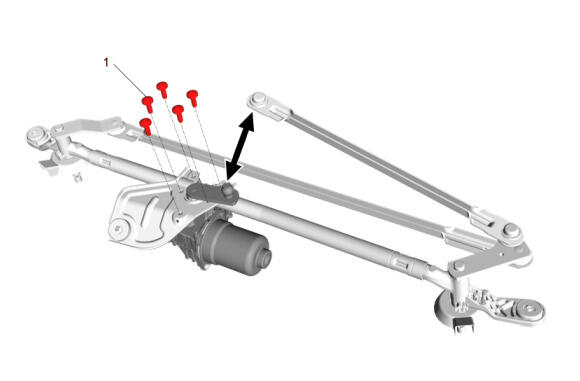

Windshield Wiper Motor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Windshield Wiper Motor Bolt [5x] | - | - | 7.5 N.m (6 lb ft) | Windshield Wiper Motor Replacement |

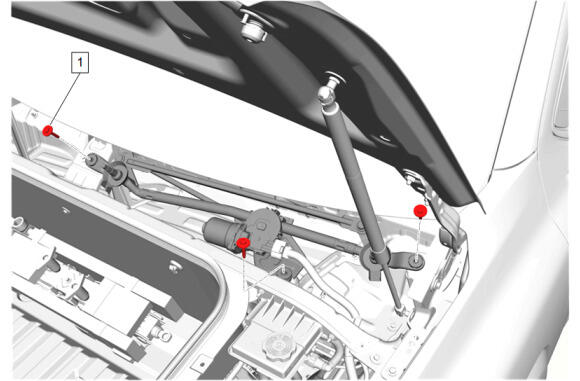

Windshield Wiper System Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Windshield Wiper System Module Bolt [3x] | - | - | 9 N.m (80 lb in) | Windshield Wiper System Module Replacement |
