Removal Procedure

  1. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
  2. Place match marks on the steering linkage tie rod adjuster nut and the steering linkage inner tie rod.
  3. GM6523040Courtesy of GENERAL MOTORS COMPANY

    Steering Linkage Tie Rod Adjuster Nut (1) - Loosen

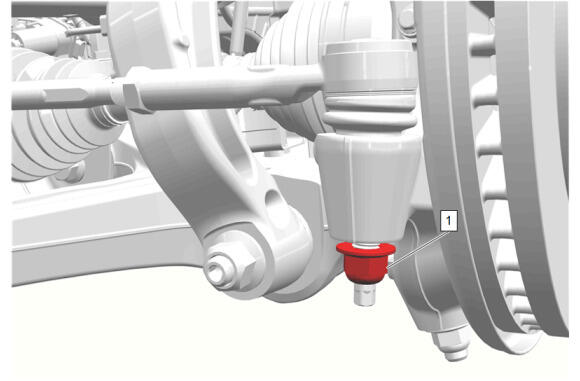

  4. GM6523044Courtesy of GENERAL MOTORS COMPANY

    Steering Linkage Outer Tie Rod Nut (1) - Loosen

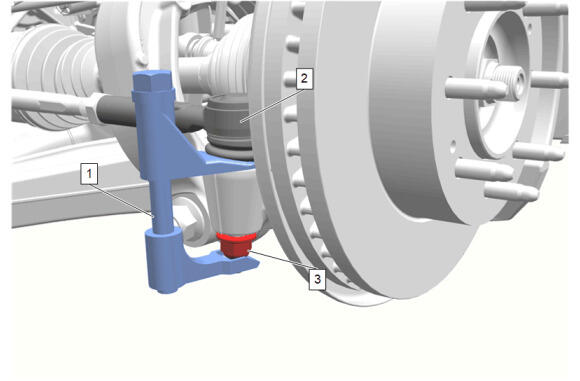

  5. GM6523046Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.

    Using the CH-42188-B  Ball Joint Separator (1), separate the steering linkage outer tie rod (2) from the steering knuckle.

  6. GM6523049Courtesy of GENERAL MOTORS COMPANY

    Steering Linkage Outer Tie Rod Nut (1) - Remove

  7. GM6523052Courtesy of GENERAL MOTORS COMPANY

    Steering Linkage Outer Tie Rod (1) - Remove

  8. GM6528602Courtesy of GENERAL MOTORS COMPANY

    Steering Linkage Tie Rod Adjuster Nut (4) - Remove

  9. Steering Gear Boot Clamp (3) - Remove - Hose Clamp Replacement Guidelines - Spring Type
  10. Steering Gear Boot Inner Clamp (1) - Remove and DISCARD
  11. Steering Gear Boot (2) - Remove
