Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Position a NEW steering gear boot inner clamp (1) on the steering gear boot (2).
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Boot (1) - Install
Courtesy of GENERAL MOTORS COMPANY

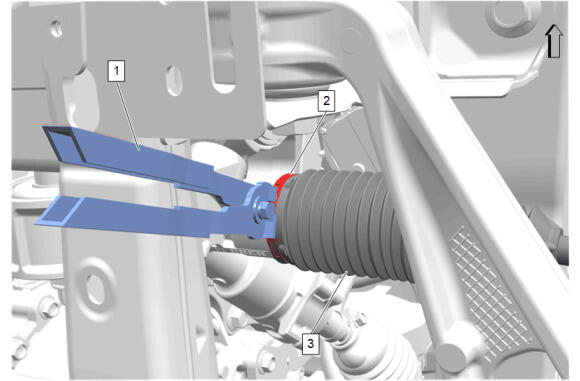

Using the CH-22610 Keystone Clamp Pliers (1), tighten the steering gear boot inner clamp (2).
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Boot Clamp (3) - Install - Hose Clamp Replacement Guidelines - Spring Type
Install the steering linkage tie rod adjuster nut (4) until aligned with the previously placed matched mark on the steering linkage inner tie rod.
Courtesy of GENERAL MOTORS COMPANY

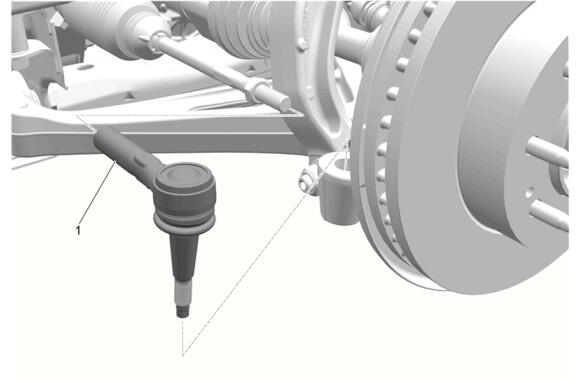

Steering Linkage Outer Tie Rod (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution .

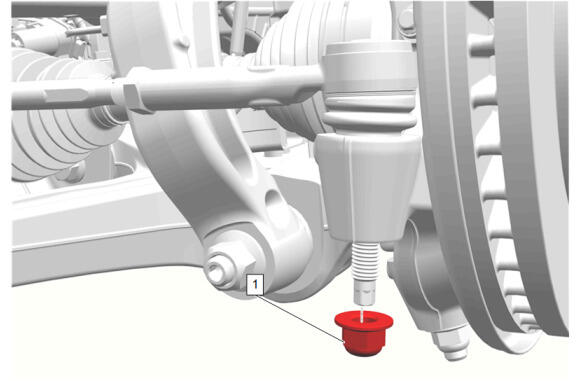

Steering Linkage Outer Tie Rod Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Tighten the steering linkage tie rod adjuster nut (1) during the front toe adjustment procedure.
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
