Installation Procedure
Power Steering Assist Motor Seal (1) @ Power Steering Assist Motor - Install NEW
- Power Steering Assist Motor (2) - Install
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
CAUTION:Power Steering Assist Motor Bolt (1) - Install NEW and tighten [4x] - Fastener Specifications
Connect the electrical connectors. (1)
- Using a digital scale, weigh the NEW electric belt drive rack and pinion steering gear belt. Record the weight and use the chart to determine the tension of the electric belt drive rack and pinion steering gear belt. Refer to the Belt Tension Table for proper belt tension specification.
Electric Belt Drive Rack and Pinion Steering Gear Belt (1) - Install NEW
- NOTE:
With the steering linkage inner tie rods removed, there is no stop on the end of the steering rack travel.
Install an appropriate tool (1) on the input shaft (2) and rotate the input shaft as close to end to end travel as possible 3 times to manually break in the electric belt drive rack and pinion steering gear belt.
- Ensure the electric belt drive rack and pinion steering gear rotates freely.
Move the steering rack to centered position. The center position can be found by taking a measurement of the distance (a) from the end of the steering gear housing to the end of the steering gear rack (1). This measurement should be 61.1 mm (2.4 in).
To adjust the belt tension, loosen the steering gear idler pulley (4) and use the tool installed to adjust the belt tension as necessary. Tighten the steering gear idler pulley (4) when taking measurements.
- Install the CH-53104 Steering Gear Idler Pulley Holder (2).
- Install and tighten the 2 power steering assist housing bolts (3).
- Install an appropriate sized C-clamp (1) with a rubber pad on the tightening surface to tighten the steering gear idler pulley to the correct specification.
- Place the body of the GE-50576-A Acoustic Belt Tension Tester on a flat surface.
Position the microphone of the GE-50576-A Acoustic Belt Tension Tester (1) at the outboard location of the electric belt drive rack and pinion steering gear belt (2).
- Use an allen wrench or finger to strum the steering gear belt at the center location between the two pulleys three times to get an average belt tension reading.
- Record the average reading from the outboard frequency test.
Position the microphone of the GE-50576-A Acoustic Belt Tension Tester (1) at the inboard location of the electric belt drive rack and pinion steering gear belt (2).
- Use an allen wrench or finger to strum the steering gear belt at the center location between the two pulleys three times to get an average belt tension reading.
- Record the average reading from the inboard frequency test.
- Find the average of the inboard and outboard measurements and compare to the chart. If the frequency is within specification, continue. If not, repeat steps 14 - 20 until accurate frequency specification is achieved.
- Apply the final torque for the steering gear idler pulley before removing the tools. Fastener Specifications
- Remove the C-clamp used to tighten the idler pulley.
- Confirm the inboard and outboard measurements are still within specification. If not, repeat steps 15 - 21 until accurate frequency specification is achieved.
- Remove the GE-50576-A Acoustic Belt Tension Tester.
- Remove the 2 power steering assist housing bolts used during the belt tension procedure.
- Remove the CH-53104 Steering Gear Idler Pulley Holder.

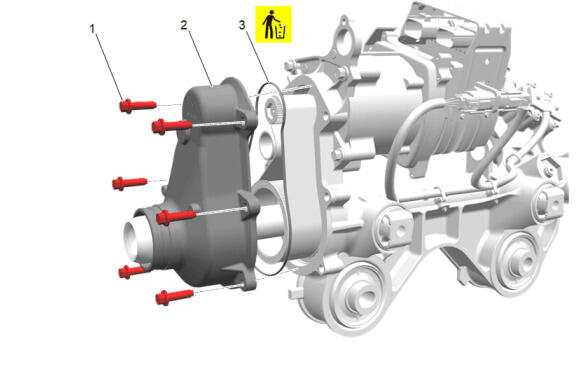

Power Steering Assist Motor Seal (3) @ Steering Gear Housing Cover - Install NEW
- Steering Gear Housing Cover (2) - Install
- Power Steering Assist Housing Bolt (1) - Install and tighten [6x] - Fastener Specifications
Steering Linkage Inner Tie Rod - Left Side and Right Side (1) - Install [2x]
- CAUTION:
Holding the steering gear rack bar with anything other than a non-serrated adjustable wrench will cause damage to the steering gear.
Cover the electric belt drive rack and pinion steering gear bar (2) with a clean shop towel.
- Hold the electric belt drive rack and pinion steering gear bar (2) with a non-serrated adjustable wrench.
- Using a universal inner tie rod wrench, tighten the left and right side steering linkage inner tie rods (1). Fastener Specifications
Position a NEW left and right side steering gear boot clamp-inner (1) on the left and right side steering gear boots (2).
Steering Gear Boot - Left Side and Right Side (1) - Install [2x]
Using the CH-22610 Keystone Clamp Pliers (2), tighten the left and right side steering gear boot clamp-inner (1).
Steering Gear Boot Clamp - Outer - Left Side and Right Side (1) - Install [2x] - Hose Clamp Replacement Guidelines - Spring Type
Install the left and right side steering linkage inner tie rod nuts (2) until aligned with the previously placed matched mark on the steering linkage inner tie rod.
- Steering Linkage Outer Tie Rod - Left Side and Right Side (1) - Install [2x]

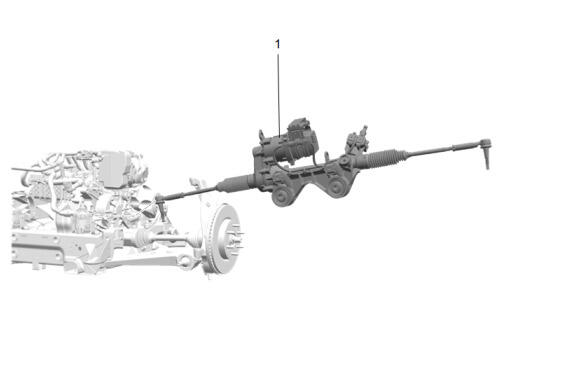

With the aid of an assistant, install the electric belt drive rack and pinion steering gear (1).

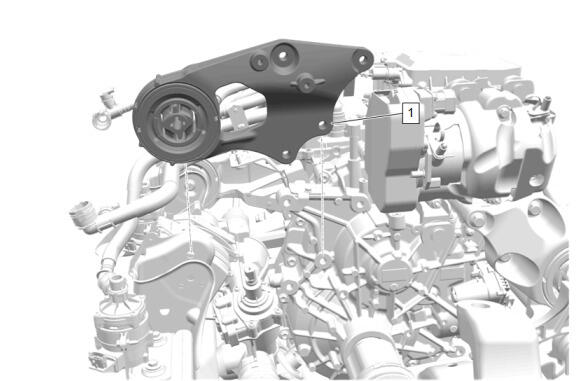

Drive Motor Mount (1) - Install
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

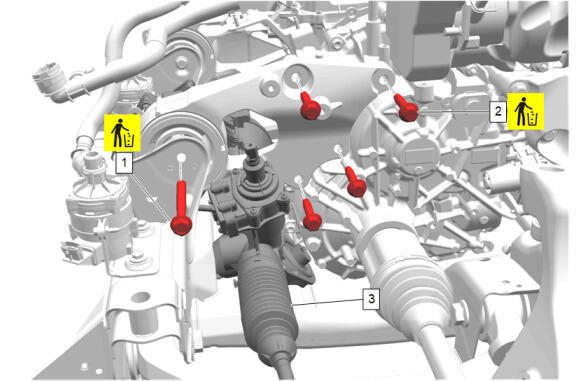

Drive Motor Mount Bolt - M12 x 110 (1) - Install NEW and tighten - Fastener Specifications
- Drive Motor Mount Bolt - M12 x 60.90 (2) - Install NEW and tighten [4x] - Fastener Specifications
- Electric Belt Drive Rack and Pinion Steering Gear (3) - Install

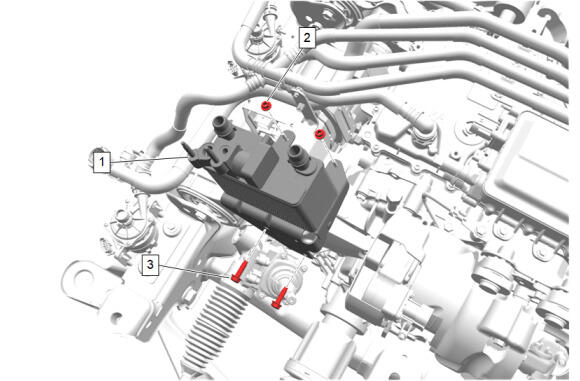

Drive Motor Battery Coolant Cooler (1) - Install
- Engine Wiring Harness Bolt (3) - Install and tighten [2x] - Fastener Specifications
- Drive Motor Battery Cooling Blower Bracket Bolt (2) - Install and tighten - Fastener Specifications

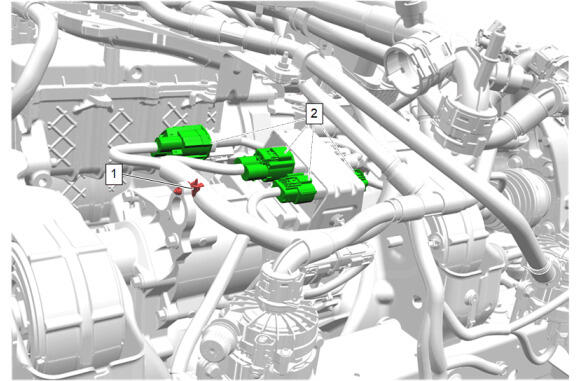

Connect the electrical connectors and install the wiring harness retainers as necessary. (1, 2)

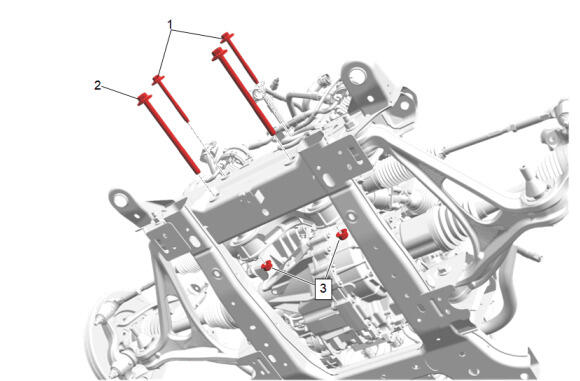

Steering Gear Bolt - Upper (1) - Install and tighten [2x] - Fastener Specifications
- Steering Gear Bolt - Lower (2) - Install [2x]
- Steering Gear Nut (3) - Install and hand tighten [2x]
- Steering Gear Bolt - Lower (2) - Tighten [2x] - Fastener Specifications

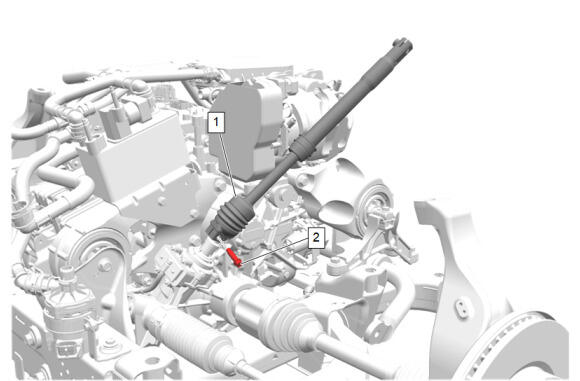

Intermediate Steering Shaft (1) - Install
- Intermediate Steering Shaft Lower Bolt (2) - Install and tighten - Fastener Specifications
- Front Cradle - Install - Front Cradle Removal and Installation (FE2) , or Front Cradle Removal and Installation (F47)
- Run all necessary programming and setup procedures. Control Module References
- Calibrate the power steering control module. Power Steering Control Module Calibration
Install a rubber pad to the tightening surface to prevent damage to the idler pulley.
NEVER hold the tester by hand while taking measurements or the readings will be inaccurate.
Never use a sharp object to strum the belt as belt damage may occur. If the belt is damaged, the electric belt drive rack and pinion steering gear will need to be replaced.
Strum the electric belt drive rack and pinion steering gear belt as close as possible to the center position between the two electric belt drive rack and pinion steering gear pulleys to achieve the most accurate readings.
When testing frequency, there should be a difference of 10 - 40 Hz between the inboard and outboard measurements. If you are not seeing a difference in the measurements, rotate the electric belt drive rack and pinion steering gear 90 degrees and try again.
Increasing the belt tension increases the frequency. Reducing the belt tension reduces the frequency.
Refer to Component Fastener Tightening Caution .
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
