Fastener Specifications

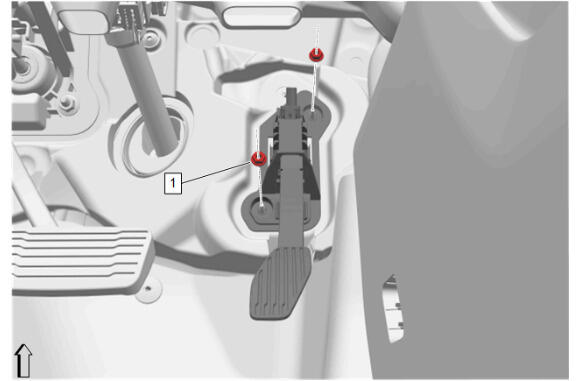

Accelerator Pedal Nuts
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Accelerator Pedal Nut [2x] | - | - | 9 N.m (80 lb in) | Accelerator Pedal Replacement |

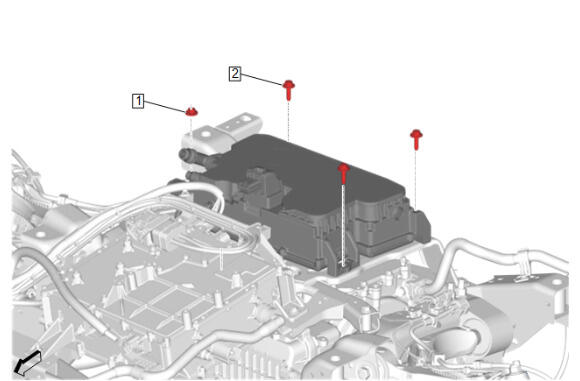

DC/AC Converter Control Module Bolts and Nut (K28)
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | High Voltage Battery DC/AC Converter Control Module Nut | - | - | 22 N.m (16 lb ft) | DC/AC Converter Control Module Replacement (K28) |
| 2 | High Voltage Battery DC/AC Converter Control Module Bolt [3x] | - | - | 22 N.m (16 lb ft) | DC/AC Converter Control Module Replacement (K28) |

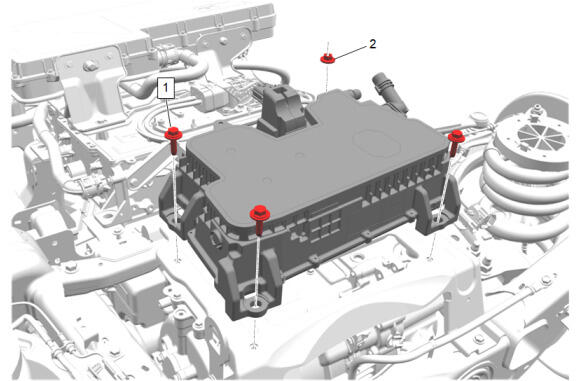

DC/AC Converter Control Module Bolts and Nut (K2O)
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | High Voltage Battery DC/AC Converter Control Module Bolt [3x] | - | - | 22 N.m (16 lb ft) | DC/AC Converter Control Module Replacement (K2O) |
| 2 | High Voltage Battery DC/AC Converter Control Module Nut | - | - | 22 N.m (16 lb ft) | DC/AC Converter Control Module Replacement (K2O) |
