Removal Procedure

  1. Rear Suspension Cradle - Remove - Rear Suspension Cradle Removal and Installation (FE2) , or Rear Suspension Cradle Removal and Installation (F47)

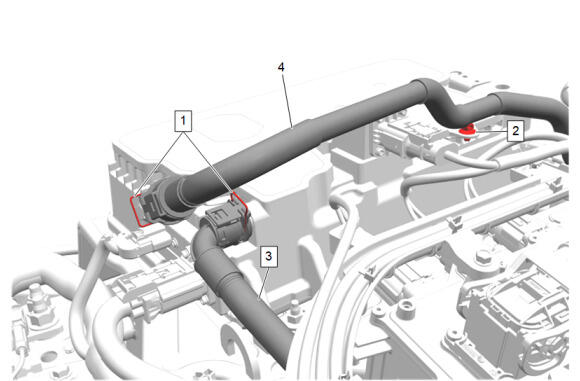

  2. GM6309684Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Disengage [2x]

  3. Transmission Fluid Cooler Pipe Clip (2) - Disengage
  4. Rear Electric Drive Transmission Module Coolant Hose (3) @ DC/AC Converter Control Module - Remove
  5. Drive Motor Power Distribution Control Module Hose (4) @ DC/AC Converter Control Module - Remove

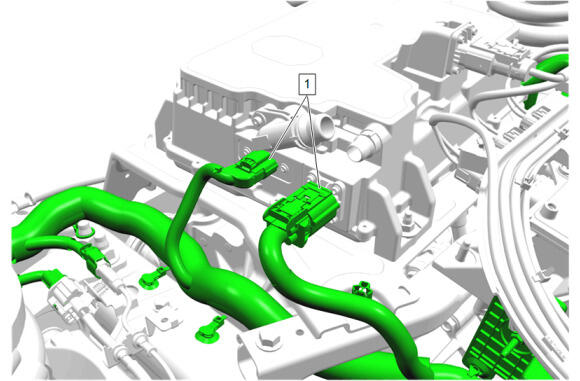

  6. GM6309730Courtesy of GENERAL MOTORS COMPANY

    Chassis Rear Wiring Harness (1) @ DC/AC Converter Control Module - Disconnect [2x]

  7. GM6302477Courtesy of GENERAL MOTORS COMPANY

    High Voltage Connector (1) @ DC/AC Converter Control Module - Disconnect - High Voltage Connectors

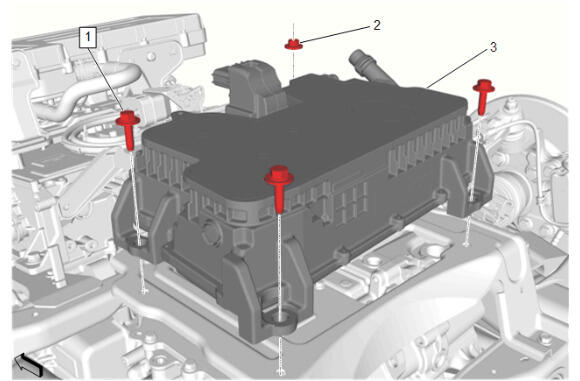

  8. GM6309764Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery DC/AC Converter Control Module Bolt (1) - Remove [3x]

  9. High Voltage Battery DC/AC Converter Control Module Nut (2) - Remove
  10. DC/AC Converter Control Module (3) - Remove
