Removal Procedure
- Rear Suspension Cradle - Remove - Rear Suspension Cradle Removal and Installation (FE2) , or Rear Suspension Cradle Removal and Installation (F47)

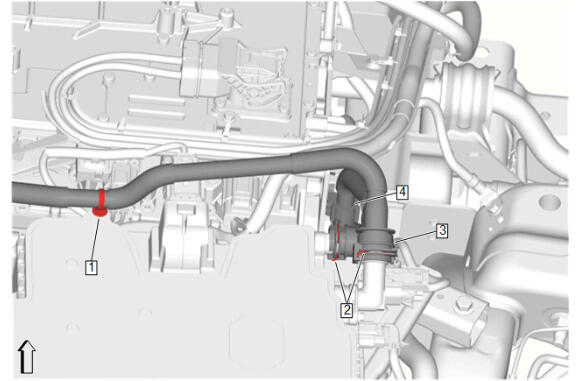

Retainer (1) - Remove
- Retainer (2) - Disengage [2x]
- Drive Motor Power Distribution Control Module Hose (3) - Disconnect
- Rear Electric Drive Transmission Module Coolant Hose (4) - Disconnect

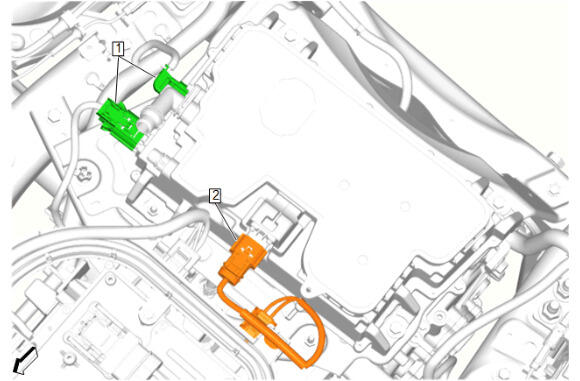

Electrical Connector (1) - Disconnect [2x]
- High Voltage Electrical Connector (2) - Disconnect - High Voltage Connectors

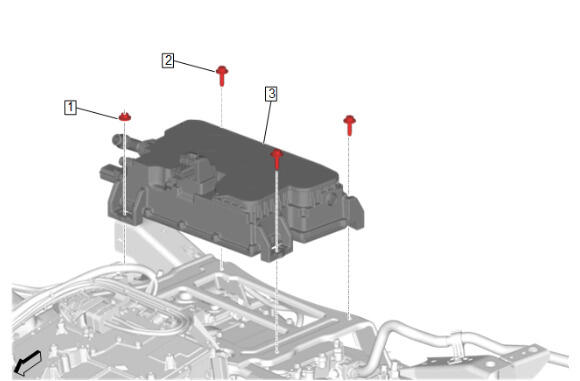

High Voltage Battery DC/AC Converter Control Module Nut (1) - Remove
- High Voltage Battery DC/AC Converter Control Module Bolt (2) - Remove [3x]
- DC/AC Converter Control Module (3) - Remove
