Installation Procedure

WARNING: This page is about a different car, the 2024 Chevrolet Silverado EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Cruise Control Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

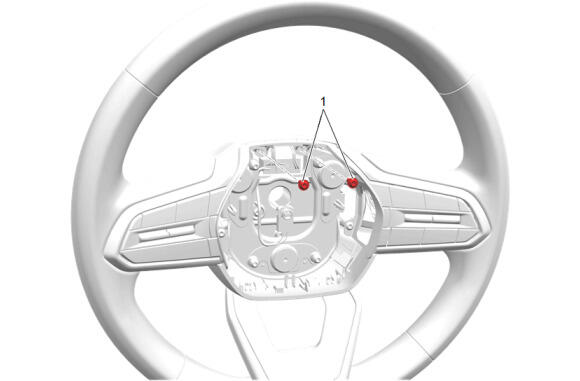

Cruise Control Switch Bolt (1) @ Cruise Control Switch - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

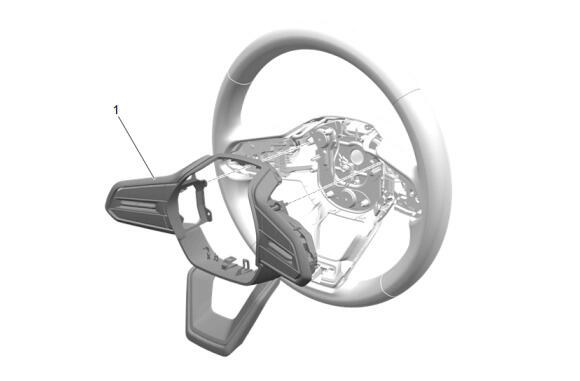

Steering Wheel Trim Spoke Cover Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Spoke Cover Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

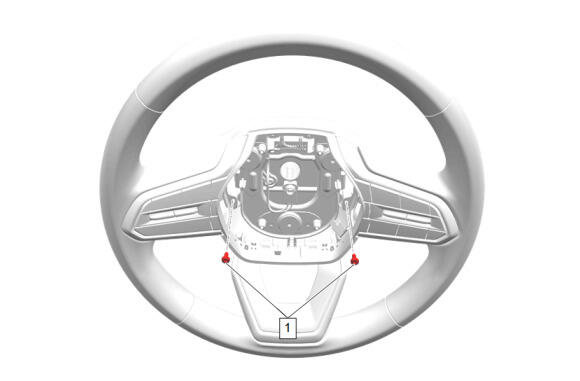

Steering Wheel Spoke Cover Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

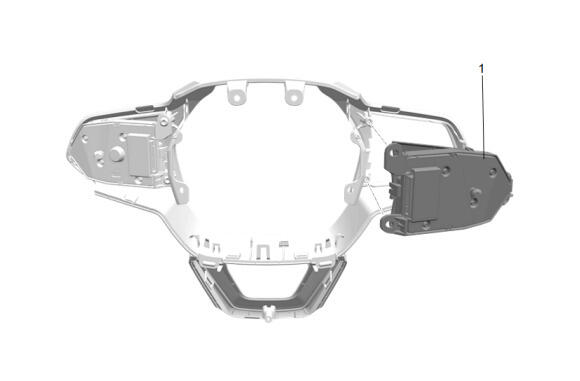

Cruise Control Switch Bolt (1) @ Steering Wheel Trim Spoke Cover Applique - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

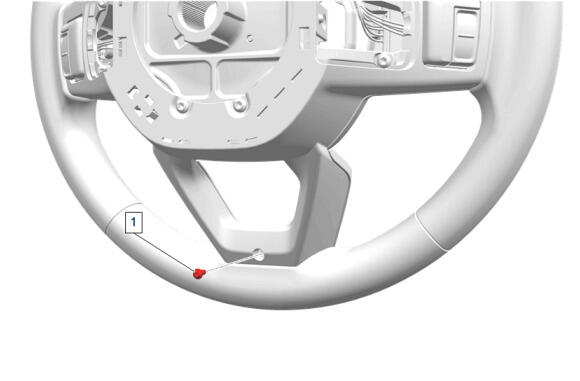

Steering Wheel Spoke Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Install any connector position assurance (CPA) devices or secondary locks.

WARNING:

After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.

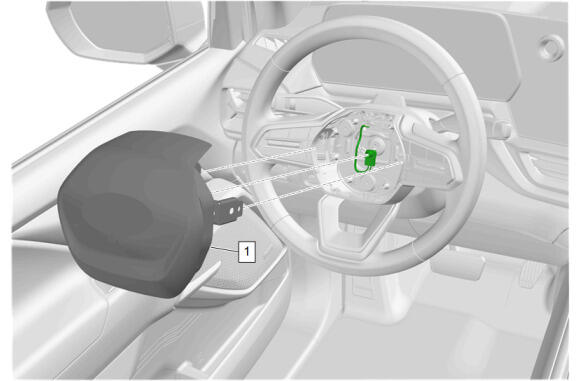

Steering Wheel Airbag (1) - Install
Courtesy of GENERAL MOTORS COMPANY

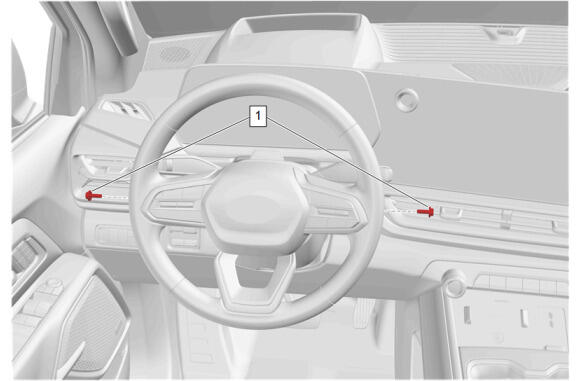

Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

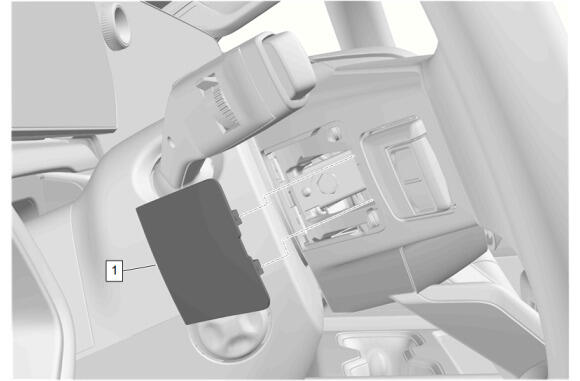

Install the left and right steering wheel airbag access hole covers (1).
Enable the SIR System. SIR Disabling and Enabling
