K36 Restraints Control Module X2

Courtesy of GENERAL MOTORS COMPANY

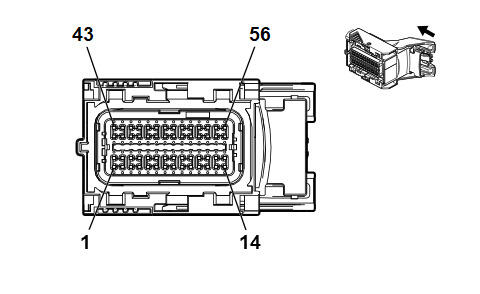

Connector Part Information

Harness Type: Body Wiring Harness
OEM Connector: 12707519
Service Connector: 85021508
Description: 56-Way F 0.64 Series, Sealed (BK with BK Terminal Position Assurance)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19354746	J-35616-64B (L-BU)	J-38125-215A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1 - 9	-	-	-	Not Occupied	-	-
10	0.5 0.5	BU / OG BU / OG	5163 5163	Rear Center Seat Belt Switch Signal Rear Center Seat Belt Switch Signal	I I	ESG -ESG
11	0.5 0.5	YE / OG YE / OG	5161 5161	Left Rear Seat Belt Switch Signal Left Rear Seat Belt Switch Signal	I I	ESG -ESG
12	0.5	OG / GY	2652	Driver Seat Belt Sensor Signal	I	-
13	0.35	BK / OG	6627	Right Rear Side Impact Sensor Low Reference	I	-
14	0.35	OG / WH	6626	Right Rear Side Impact Sensor Signal	I	-
15	0.35	OG / YE	3074	Pyrotechnic Battery Cut-Off Actuator	I	-
16	0.35	BU / OG	3075	Battery Cut-Off Module Low Control	I	-
17 - 22	-	-	-	Not Occupied	-	-
23	0.35	BK / OG	1363	Driver Seat Belt Switch Low Reference	I	-
24	0.5 0.5	BN / OG BN / OG	5162 5162	Right Rear Seat Belt Switch Signal Right Rear Seat Belt Switch Signal	I I	ESG -ESG
25	0.35	OG / VT	1362	Passenger Seat Belt Switch Signal	I	-
26	-	-	-	Not Occupied	-	-
27	0.35	BK / OG	6628	Left Front Side Impact Sensor Low Reference	I	-
28	0.35	OG / GN	2132	Left Front Side Impact Sensor Signal	I	-
29 - 30	-	-	-	Not Occupied	-	-
31	0.35	GY / OG	11359	Battery Cutoff Restraint 2 Low Control	I	-
32	0.35	OG / BN	11358	Battery Cutoff Restraint 2 High Control	I	-
33 - 36	-	-	-	Not Occupied	-	-
37	0.5	OG / GY	5021	Right Front Roof Rail Air Bag High Control	I	-
38	0.5	WH / OG	5022	Right Front Roof Rail Air Bag Low Control	I	-
39	0.5	BU / OG	4957	Passenger Seat Back Air Bag Low Control	I	-
40	0.5	OG / GY	4956	Passenger Seat Back Air Bag High Control	I	-
41	0.35	BK / OG	6629	Right Front Side Impact Sensor Low Reference	I	-
42	0.35	BN / OG	2134	Right Front Side Impact Sensor Signal	I	-
43 - 50	-	-	-	Not Occupied	-	-
51	0.5	OG / GN	5019	Left Front Roof Rail Air Bag High Control	I	-
52	0.5	VT / OG	5020	Left Front Roof Rail Air Bag Low Control	I	-
53	0.5	BK / OG	4963	Driver Seat Back Air Bag Low Control	I	-
54	0.5	OG / BU	4962	Driver Seat Back Air Bag High Control	I	-
55	0.35	BK / OG	6623	Left Rear Side Impact Sensor Low Reference	I	-
56	0.35	OG / BU	6622	Left Rear Side Impact Sensor Signal	I	-
