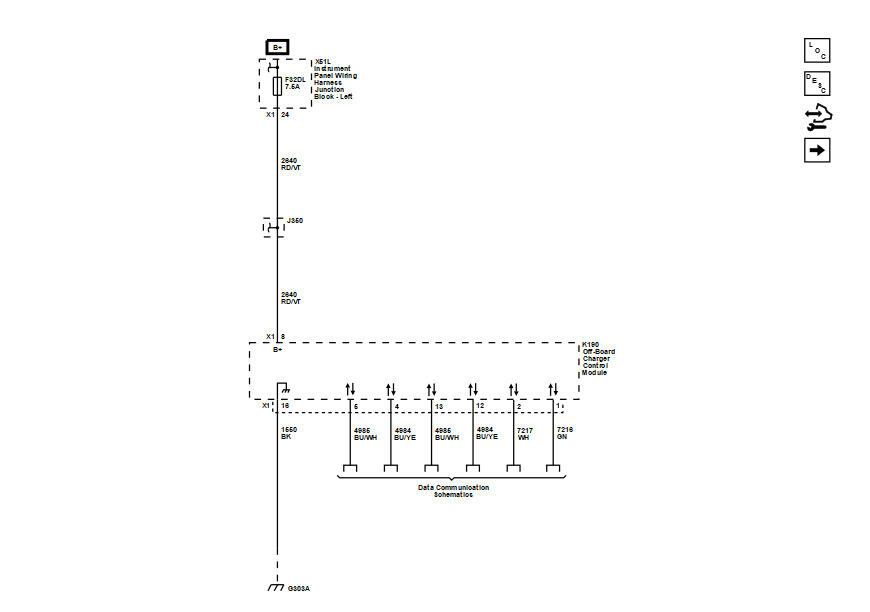

Off-Board Charger Control Module, Power, Ground, and Serial Data (UED)

GM6543476

Courtesy of GENERAL MOTORS COMPANY
