Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

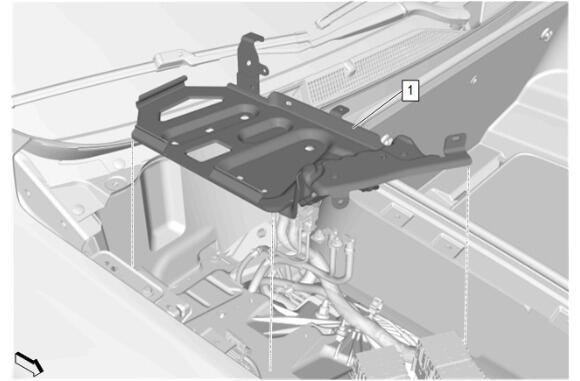

Battery Tray (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

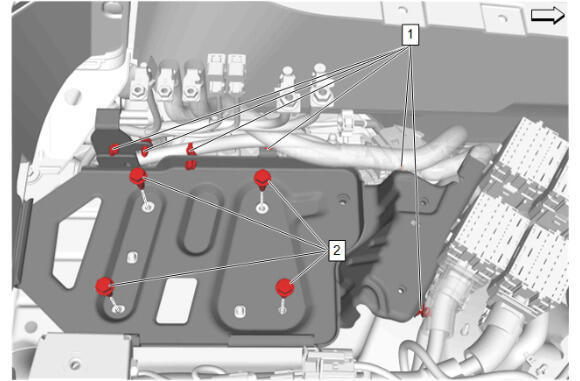

Battery Tray Bolt (2) - Install and tighten [4x] - Fastener Specifications
Install the 6 body wiring harness retainers (1).
Courtesy of GENERAL MOTORS COMPANY

Battery (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Battery Hold Down Retainer Bolt Retainer (2) - Install
Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Battery Hold Down Strap (1) - Install
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Battery Vent Tube (3) - Install
{If equipped} Wiring Harness Clip (2) - Engage
Battery Hold Down Strap Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Battery Negative Sensor Cable (5) - Install
Wiring Harness Clip (4) - Engage
Wiring Harness (3) - Install
Wiring Harness Retainer (2) - Engage
Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

Battery Distribution Engine Compartment Fuse Block (2) - Install
Retaining Tab (1) - Engage [3x]
Courtesy of GENERAL MOTORS COMPANY

Generator Battery Positive and Negative Cable (10) - Install [2x]
Battery Positive Junction Block Cable (9) - Install
Engine Harness Terminal (8) - Install [2x]
Body Harness Terminal (7) - Install
Battery Positive Cable Nut (6) - Install and tighten [2x] - Fastener Specifications
Battery Positive Cable Junction Block Lead Nut (5) - Install and tighten - Fastener Specifications
Engine Wiring Harness Battery Lead Nut (4) - Install and tighten [2x] - Fastener Specifications
Body Front and Instrument Panel Wiring Harness Fuse Block Housing Nut (3) - Install and tighten - Fastener Specifications
Battery Distribution Engine Compartment Fuse Block (2) - Tighten - Fastener Specifications
Connect the electrical connectors. (1)
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Fuse Block Cover (2) - Install
Retaining Tab (1) - Engage [2x]
Courtesy of GENERAL MOTORS COMPANY

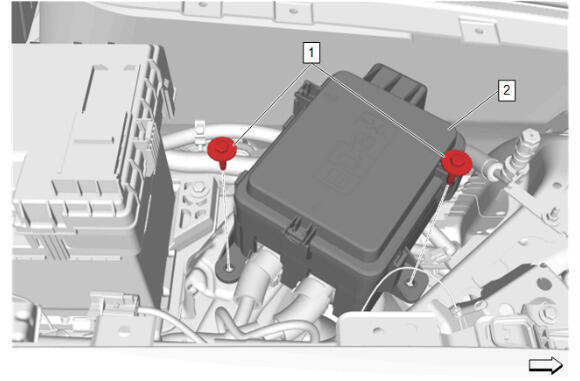

Engine Wiring Harness Fuse Block Bracket (2) - Install
Engine Wiring Harness Fuse Block Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Align and seat the front compartment rear sight shield retainer (1).
Seat the 5 front compartment rear sight shield retainers (2) along fender from front to back.
Seat the 5 inboard front compartment rear sight shield retainers (3) from front to back.
Front Compartment Rear Sight Shield - Right Side (4) - Install
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Learn the battery sensor module. Battery Sensor Module Learn
