Installation Procedure

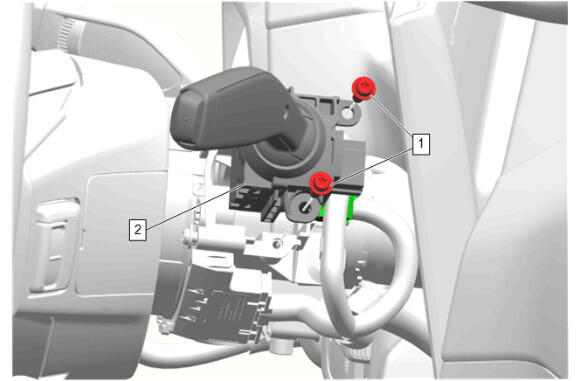

  1. GM6300862Courtesy of GENERAL MOTORS COMPANY

    Gear Shift Control Module (2) - Install

    2. CAUTION:

    Fastener Caution .

  2. Automatic Transmission Electronic Control Bolt (1) - Install and tighten [2x] - Fastener Specifications

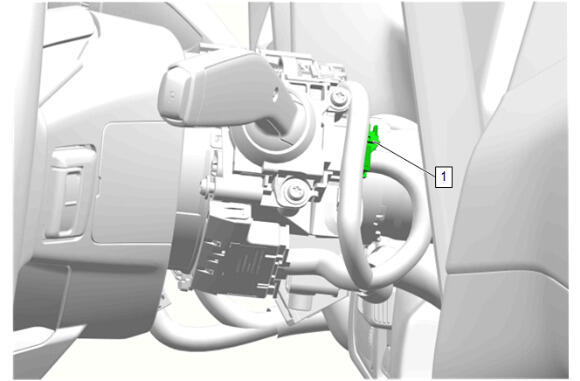

  3. GM6300861Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

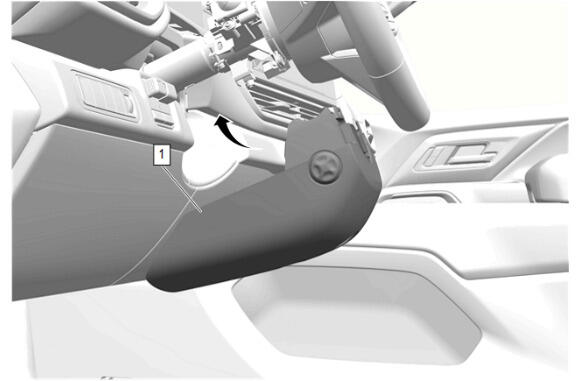

  4. GM6301976Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  5. Instrument Panel Steering Column Lower Trim Cover (1) - Install

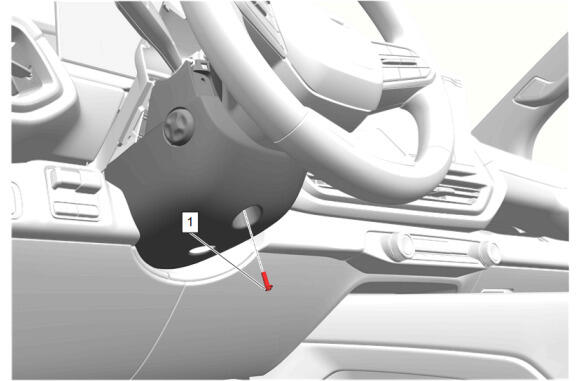

  6. GM6294575Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

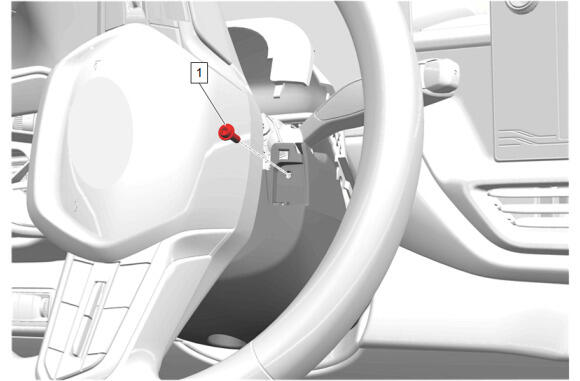

  7. GM6294578Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the right of the centered position.

  8. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

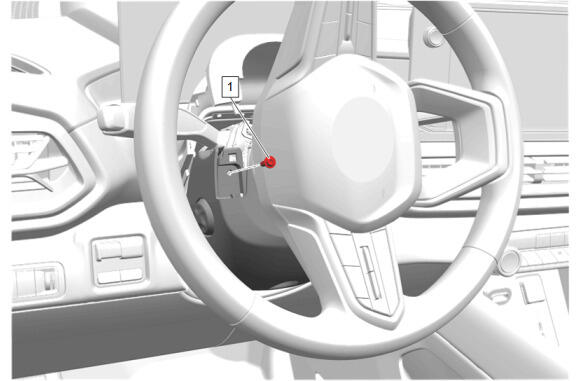

  9. GM6294573Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the left of the centered position.

  10. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
  11. Turn the steering wheel to the centered position.

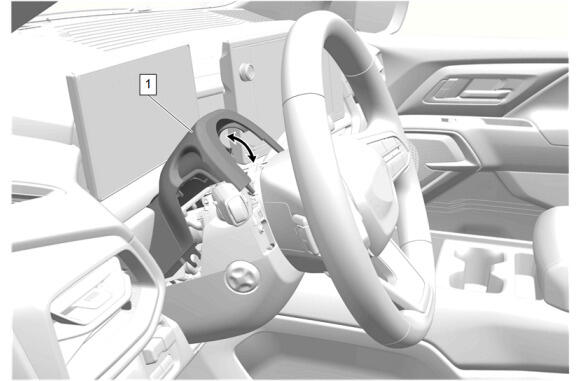

  12. GM6294580Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.

  13. Return the steering column to its original position.
  14. Reprogram the gear shift control module. Control Module References
