Installation Procedure
WARNING: This page is about a different car, the 2024 Chevrolet Silverado EV. However, it is still accessible from the selected car via links, so may be relevant.
Clean the inside of the windshield before installing the front view driver information camera bracket (1).

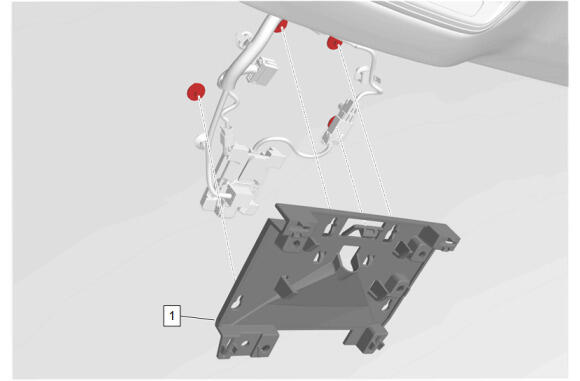

- Front View Driver Information Camera Bracket (1) - Install
- Connect the wiring harness retainers as necessary.
Front View Camera (1) - Install
Slide the front view camera (2) downward to engage.
- Secure the retaining tab (1).
- Connect the electrical connector.
- NOTE:
Slide the inside rearview mirror onto the mirror mount.

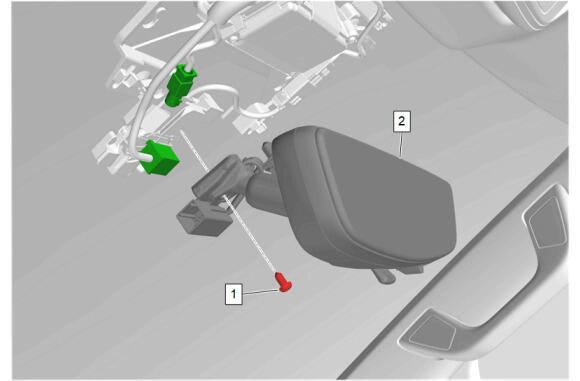

Inside Rearview Mirror (2) - Install
- Inside Rearview Mirror Bolt (1) - Tighten - Fastener Specifications
- {If equipped} Connect all electrical connectors.
Windshield Multifunction Sensor Mount Bracket Cover (1) - Install
Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install
- Perform the camera calibration procedure. Front View Camera - Windshield Learn
CAUTION:
Refer to Fastener Caution .
