Installation Procedure

WARNING: This page is about a different car, the 2024 Chevrolet Silverado EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

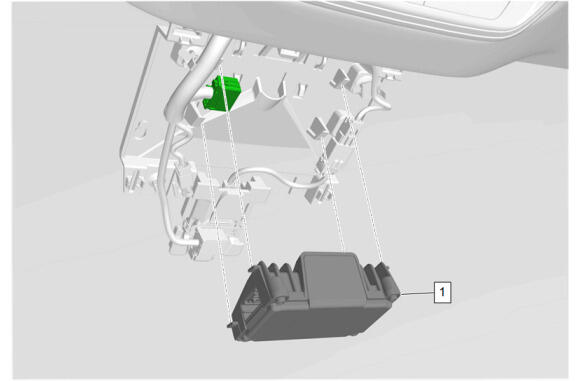

Front View Camera (1) - Install
Courtesy of GENERAL MOTORS COMPANY

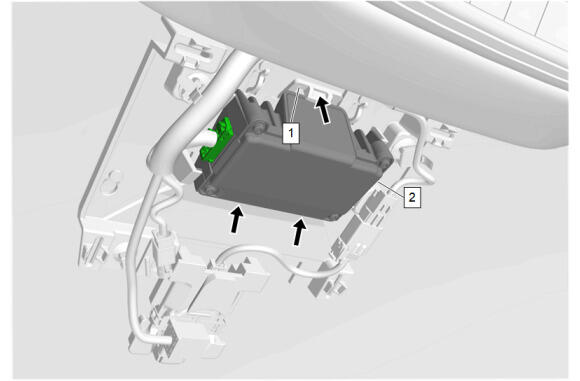

Slide the front view camera (2) downward to engage.
Secure the retaining tab (1).
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

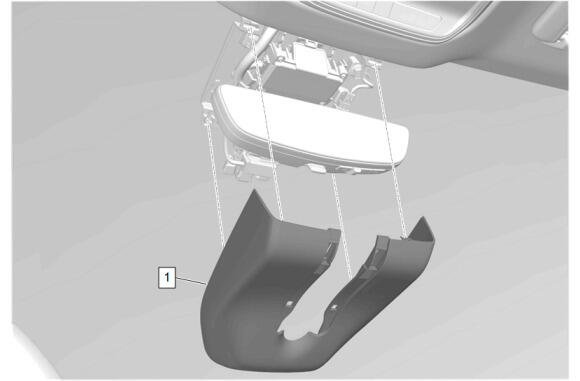

Windshield Multifunction Sensor Mount Bracket Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

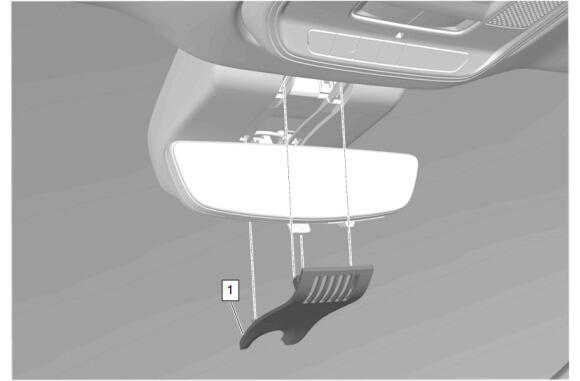

Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install
Perform the camera calibration procedure. Front View Camera - Windshield Learn
