Fastener Specifications
WARNING: This page is about a different car, the 2024 Chevrolet Silverado EV. However, it is still accessible from the selected car via links, so may be relevant.
Active Safety Control Module Bracket & Image Processing Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Active Safety Control Module Bracket Nut [6x] | - | - | 7.5 N.m (66 lb in) | Active Safety Control Module Bracket Replacement (UKL) |
| Image Processing Module Replacement (UKL / UKM) |

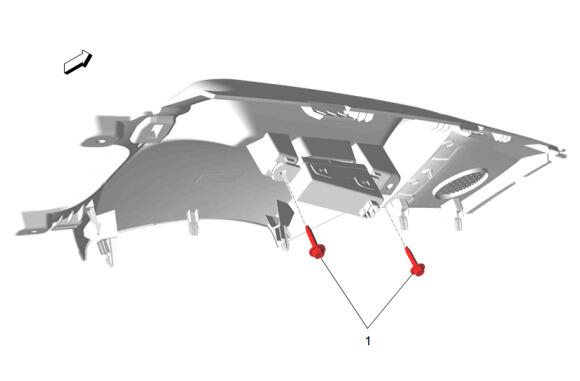

Forward Collision Alert Display (UIT)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Collision Alert Display Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Forward Collision Alert Display Replacement (UIT) |

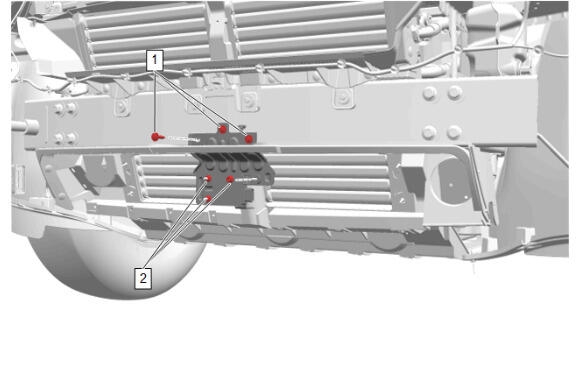

Forward Range Radar Sensor, Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Range Radar Bracket Bolt [3x] | - | - | 9 N.m (80 lb in) | Forward Range Radar Bracket Replacement (UKL / UGN) |
| 2 | Forward Range Radar Module/Sensor Nut [3x] | - | - | 9 N.m (80 lb in) | Forward Range Radar Sensor Replacement (UKL / UGN) |
Rear Short Range Radar Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rear Short Range Radar Sensor Replacement (UKL / UKM) |

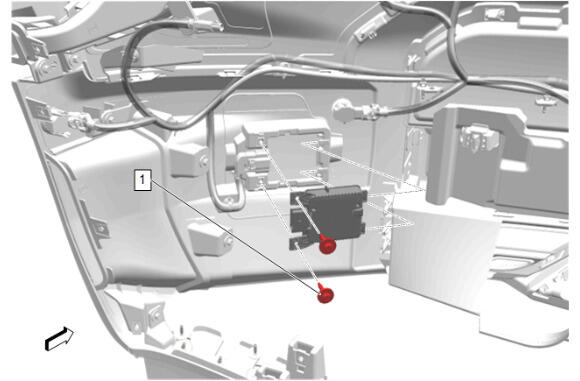

Short Range Radar Rear Side Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Short Range Radar Rear Side Sensor Replacement (UKL) |
Short Range Radar Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Short Range Radar Sensor Replacement (UKL) |

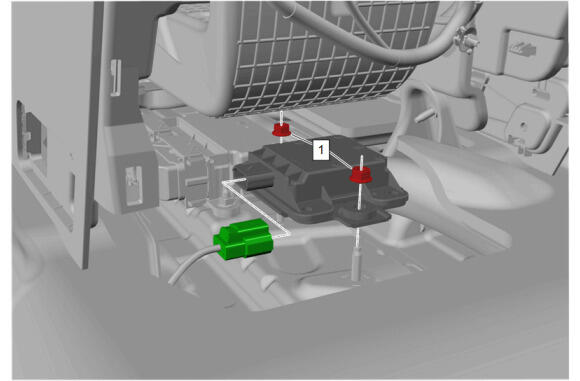

Vehicle Dynamics Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Vehicle Dynamic Sensor Nut [2x] | - | - | 9 N.m (80 lb in) | Vehicle Dynamics Sensor Replacement |
