Fastener Specifications
WARNING: This page is about a different car, the 2024 Chevrolet Silverado EV. However, it is still accessible from the selected car via links, so may be relevant.

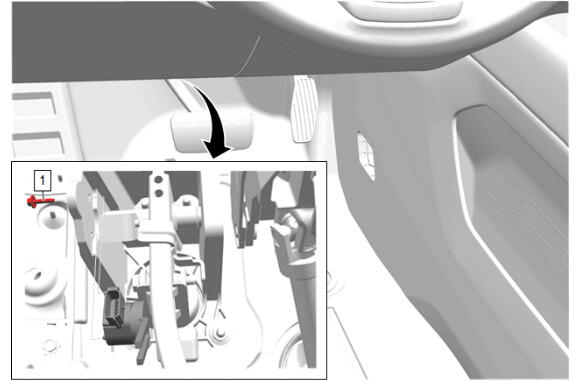

Brake Pedal Position Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Brake Pedal Position Sensor Bolt | - | - | 3 N.m (27 lb in) | Brake Pedal Position Sensor Replacement |
Front Decorative Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Decorative Lamp Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Decorative Lamp Replacement (9H8) |
| 2 | Front Decorative Lamp Nut [6x] | - | - | 4.7 N.m (42 lb in) | Front Decorative Lamp Replacement (9H8) |

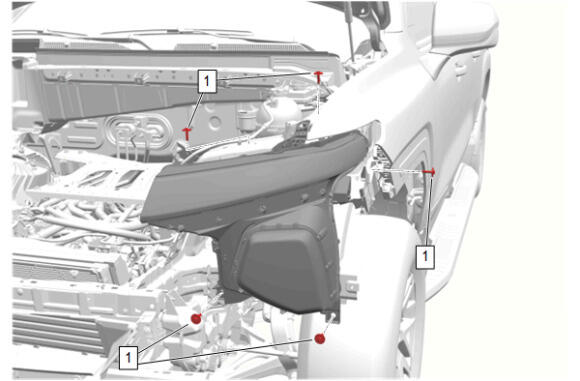

Front Headlamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Headlamp Bolt [5x] | - | - | 9 N.m (80 lb in) | Front Headlamp Replacement |

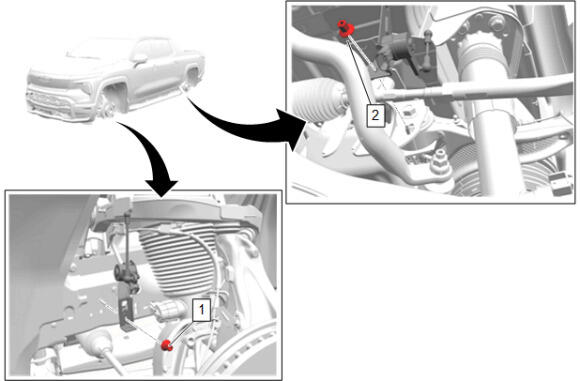

Forward Lighting Leveling System
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Suspension Automatic Forward Lighting Position Sensor Nut | - | - | 9 N.m (80 lb in) | Front Suspension Automatic Forward Lighting Position Sensor Replacement (TGE) |
| 2 | Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut | - | - | 9 N.m (80 lb in) | Rear Suspension Automatic Forward Lighting Leveling Position Sensor Replacement (TGE) |

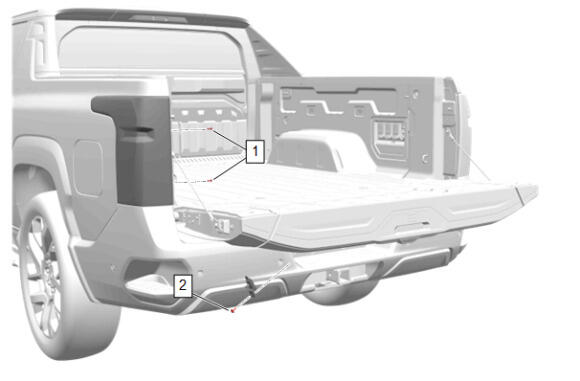

Rear Body Lighting
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Body Structure Stop Lamp Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rear Body Structure Stop Lamp Replacement (TAM) , or Rear Body Structure Stop Lamp Replacement (TAB) |
| 2 | Rear Bumper Fascia Extension Bolt | - | - | 2.5 N.m (22 lb in) | Rear License Plate Lamp Replacement |

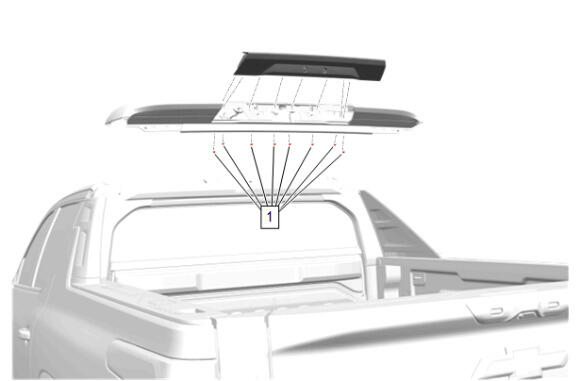

Rear Cab Lighting with Spoiler
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear End Spoiler Bolt [8x] | - | - | 1.5 N.m (13 lb in) | High Mount Stop and Cargo Lamp Replacement |
