Driver Monitoring System

WARNING: This page is about a different car, the 2024 Chevrolet Silverado EV. However, it is still accessible from the selected car via links, so may be relevant.

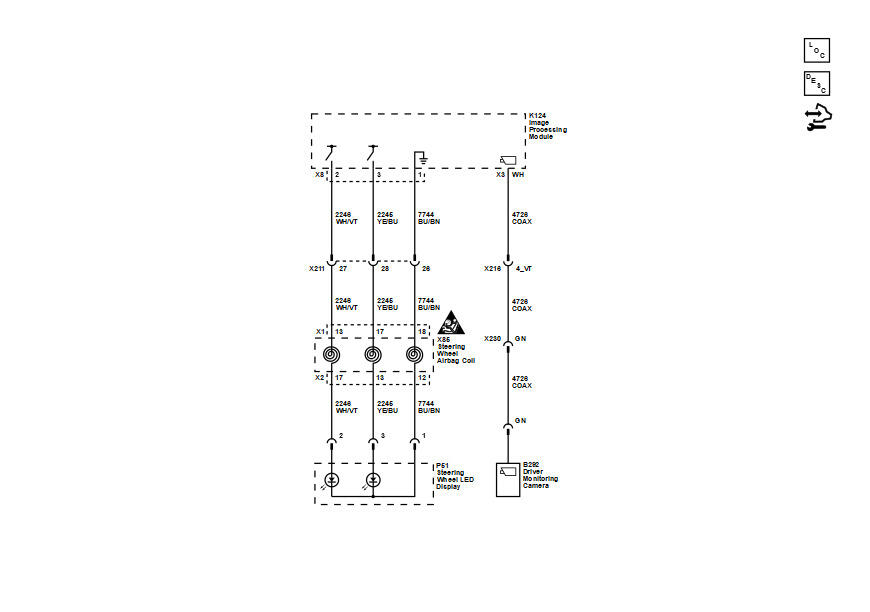

GM6161610Courtesy of GENERAL MOTORS COMPANY
